7ton Wheel Digger With Rops Operator Cab - China
price: 28500.00 Dollar US$
FOPS 7Ton Wheel Digger, High Performance 7Ton Wheel Digger, 7Ton Wheel Digger Price
China FOPS 7Ton Wheel Digger, China High Performance 7Ton Wheel Digger, China 7Ton Wheel Digger Price

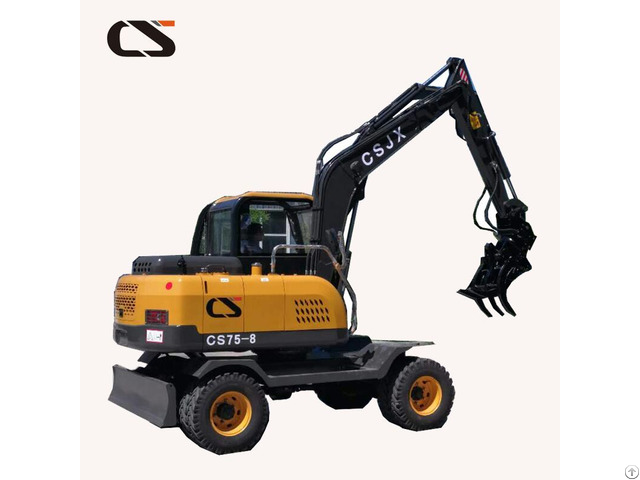

7 Tons wheel excavator
Item Unit Data BASIC PARAMETERS Operating weight kg 6700 Volume of bucket m3 0.28 Overall length mm 6000 Overall width mm 2150 Upper structure width mm 2000 Overall height mm 2729 Boom length mm 3450 Arm length mm 1850 Ground clearance mm 929 Rear-end swing radius mm 1904 Min.
ground clearance mm 220 Tyre gauge mm 1670 Wheel shaft diameter mm 2400 PERFORMANCE PARAMETERS POWER SYSTEM Engine model / YD4JZG Modality / Water cooling/supercharging Bore*Stroke mm 95/105 Piston displacement L 2.977 Power kw/rpm 48/2300 Max.
torque N.
m/rpm 245/1610 HYDRAULIC SYSTEM Hydraulic pump Gear pump×2 SGP1A23F2H9 Rated flow ml/r 23+23 Pilot pressure Mpa 3.5 Valve / Parker Working pressure MPa 20 Rated flow L/min 105.8 Hydraulic oil tank L 110 Fuel tank L 130 OPERATING SYSTEM Swing speed rpm 12 Travel speed km/h 35 Bucket digging force kN 44 Arm digging force kN 35 Max.
Hauling force kN 40 Gradeability ° 35 Parking brake / Air brake Service brake / Air brake OPERATING SCOPE Max.
digging reach mm 6147 Max.
digging depth mm 3633 Max.
digging height mm 6637 Max.
dumping height mm 4853 Min.
swing radius mm 2138
Company Contact:
- Phone: 008617753399527
- Address: Electrical and mechanical way, High-tech zone, Jining , Shandong , China
- Email:
Published date: July 14, 2018
- Business Description: Crawler Excavator, Wheel Excavator, Backhoe Loader, UAV/Agricultural Spraying Drone, Excavator Spare Parts, Bulldozer Spare Parts, Construction Machinery Oil, Pipelayer Spare Parts, Loader Spare Parts, Construction Machinery Attachment.
