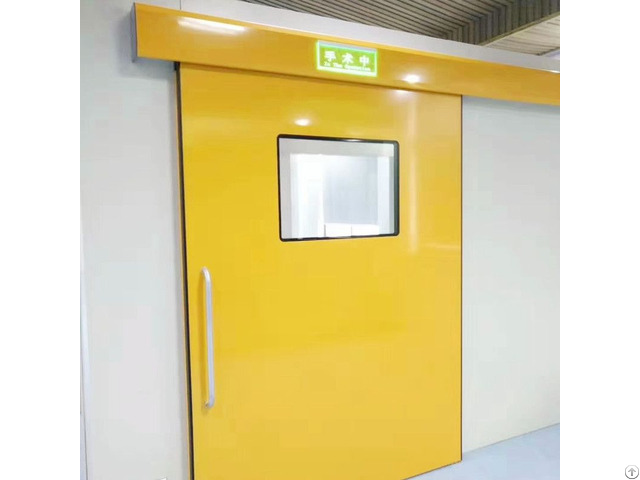

Hospital Hermetic Automatic Sliding Door - China

Hospital Hermetic Automatic Sliding Door Hospital Automatic Steel Cleanroom Door Hospital Automatic Sliding Door Application at operation room, clinic, bakery and confectioneryetc place which request high airtighness and cleaness.

Working with KAST, Panasonic, or Nabco motor and control system, activate with foot sensor, or hand sensor, safety with light barrier, anti-bumper and anti-clips, it ensure the isolation area and cleaness inside.

KAST-Automatic hospital door Introductions, 1 - Door blade, *48mm aluminum honeycomb core faced both sides with Electro-galvanized steel with powder coating(can chose color as u like)

*Framed in anodized aluminum profiles with rounded edges in aluminum or brushed stainless steel.

2 - Door frames&Silicone rubber gasket

*Frame and counter frame in aluminum profile with rounded edges or welded 304L stainless steel suit the hospital door

*Silicone seal gasket are assembled round in the door frame and around the hospial door panel to promise airtightness in the operation room.

3 - Observatio Window

Apply double laminated 5mm+5mm safety glass window with round edges and gradient color or lead glass, totally flush on both sides with the door panel

4 - Door Handle

Reinforced polyamide or 304L stainless steel bar handle or painted steel or stainless steel flush pull handle

5 - Automatic Door Operator

*"U" design anodized aluminum track with ramps

*Exclusive 24V brushless motor and controller to ensure the stable and smooth working.

Hospital Door Technical Datas, Door model Single open/Double open

Steel panel thickness 1mm/1.2mm

Door panel thickness 45-48mm

Aluminum thickness(door frame) 2mm

Standard size 2100mm*1400mm

Max capacity 150KG

Open speed(adjustable) 150mm-500mm/s

close speed(adjustable) 100-450mm/s

Activation foot sensor /hand sensor

Infill aluminum honeycomb

Power supply 230VAC+10/-15%, 50/60Hz

Working temperature -20ºC to 50ºC

Airtightness standard GB/ 7106-2008 Founded in the 2012 year, KAST is a dynamic, respected, experienced and comprehensive automatic door automation factory.
