Geze Powerdrive Sliding Door Automation - China

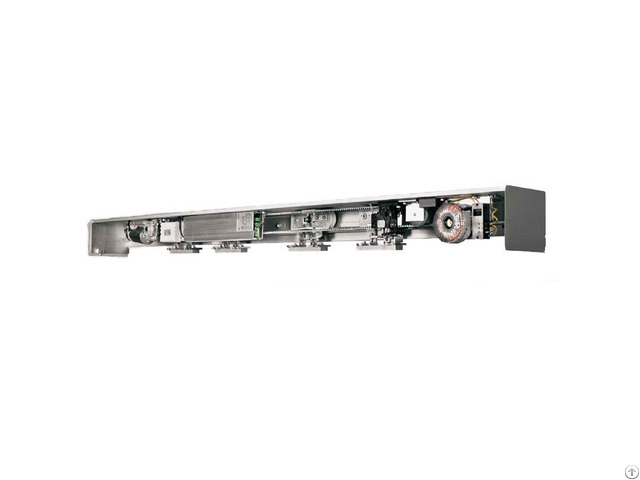

Geze Powerdrive Sliding Door Automation Automatic Sliding Door Operator Automatic sliding door system Wholesale Powerdrive can move door leaves up to 200 kg and offers the appropriate drive for large-size openings, specific door leaf structures and difficult special fillings in standard and escape route designs.

All the drive parameters settings, diagnostics and default settings can easily made from a laptop.

Powerdrive were type-tested and certified in accordance with DIN 18650 KAST-Automatic Sliding Door Features, *Very powerful drive for large, heavy leaves and wide opening widths

*Can be networked via CAN bus and integrated into building technology management systems

*Independent error recognition and recording

*Adjustment options for all door movement parameters

*Freely configurable inputs and outputs for different functions

*Integrated battery for emergency opening and closing in the event of a power failure Automatic Door Accessories Techical Datas, Mode Powerdrive

Door leaf Single open Double open

Clear opening width 700 - 3000 mm 800 -3000 mm

Door weight 200KG*1 180kg*2

Passenge height 3000mm

Dimension 120*175mm

Open speed 0.7m/s

Close speed 0.5m/s

Door leaf adjustment vertical 10mm

Door leaf adjustment horizontal 15mm

Power supply 220 V AC ±10% ; 50/60 Hz

Power consumption 150W

External components output DC 24V, max 1000mA

Ambient temperature -20°C to +50°

Relative humidity (non-condensing) max.

85% Sectional View, Powerdrive automatic door system is mounted in a profile of 150/200mm*185 - Single and double leaf doors with thin-framed leaves, of ESG (single thickness safety glass) and ISO glass as well as doors with framed panels of metal, plastic or timber.

Founded in the 2012 year, KAST is a dynamic, respected, experienced and comprehensive automatic door automation factory.

At present, We are panasonic automatic door official distributor.

Has cooperation with Dorma, Tormax, Besam, Nabco.

Company Contact:

• Posted By: Ningbo KAST Automatic Door Technology Co.,Ltd

• Phone: 86057487121387

• Address: No1,Fangxin Road,Fangqiao Industrial Zone,Fenghua District, Ningbo , zhejiang , China

• Email:

• Website: https://www.kastdoor.com/

• Business Description: As a young company founded at 2012 year, KAST has grown to become a dynamic, respected, experienced and comprehensive door automation factory.

  We are delicated to automatic door development, production and its peripheral products.

  Thanks to our dedicated commitment and we form complete range of door automations including automatic door, automatic gate, access control system, garage door, etc for your entrance.

  We are driven by intensive challenges from marketing.

  In manufacturing, We use materials that comply with the strict quality controls to promise door automation stable operation.

  and we will orgnize our engineers to travel around China, communicate with others about the development of industry aimed to enhance creativity and ability to offer an exclusive solution for marketing trend.

  2016 year, KAST start to develop clearoom industry.

  We provide fabrications for the pharmaceutical, biotechnological, healthcare, science and research, microelectronics etc around China and has beening finished around 15 projects.

  At present, We are panasonic automatic door official distributor.

  Has cooperation with Dorma, Tormax, Besam, Nabco.

  and work with an oversea engineer to develop a new door automation system which can be easy to install and program.

  We hope to boost the long-term development of door automation industry through our little endeavor and more people can enjoy the convenience from door automation.
