Fail Safe Electric Bolt Lock - China

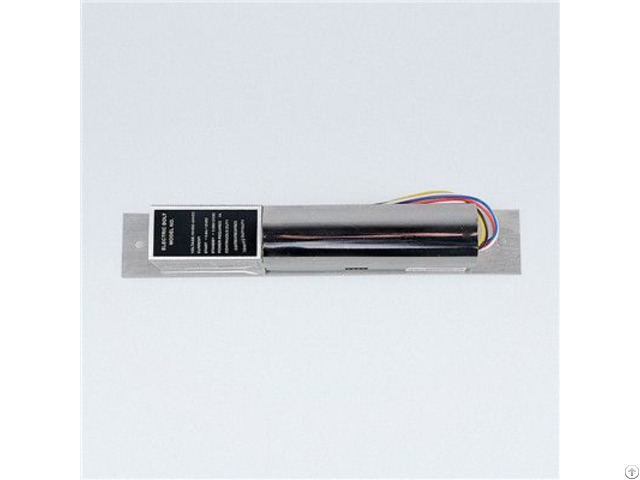

Fail Safe Electric Bolt Lock china Electric Bolt Lock company Fail Safe Electric Drop Bolt Lock KB200 is a simple fail security electric drop bolt lock with LED indicator for glass door, wood door and metal door.

It is made of high strenght aluminum alloy.

Working with 12~24VDC power with 5 wires.

It adopt the advanced Photoelectricity Control Technology to prevent the machanical defect.

Fail Safe Electric Drop Bolt Lock Features, *The Photoelectricity Control Technology, prevent the machanical defect.

*Built-in reverse current and prevention device (MOV).

*High strength aluminum alloy lock body, stainless steel lock bolt.

*Low temperature design, Safer and more durable.

*With time delay(0.3.6.9seconds optional), LED indicator signal output(NO/NC/COM) function

*Opening mode: 180-degree swinging door KAST-Electric Bolt Lock Technical Datas, Feature Fail Safe

Face Plate 204Lx35WX41H(mm)

Voltage 12~24VDC

Start Current 800mA

Standby Current 110mA

Solid Bolt polishing housing, 1000Kg Holding Force

Suitable For Wooden Door, Glass Door, Metal Door

Autolock Time Delay 0, 3, 6, 9sec

Signal Output Door status Output, NO/COM

Surface Temp Low Temperature

Surface Temp 5~10mm

Operating Temperature 0～+50℃

Operating Humidity 20%～90%

Special Designed Tested to 500000 operations

Weight 0.55kg KB200 electric bolt lock is a simple fail security electric drop bolt lock, which is made of high strength aluminum alloy.

And it adopts the advanced photoelectricity control technology to prevent the mechanical defect.
