Subway Station Guard Panel Roll Forming Machine - China

Subway Panel roll former top hat purlin forming machine supplier design equipment for production roof and ceiling using hat profiles.

In addition to C-type light steel, cap steel has been widely used in the construction of commercial projects in the United States.

The standard design is 610mm pitch truss arrangement, the upper chord is the roof, the lower chord is the ceiling.

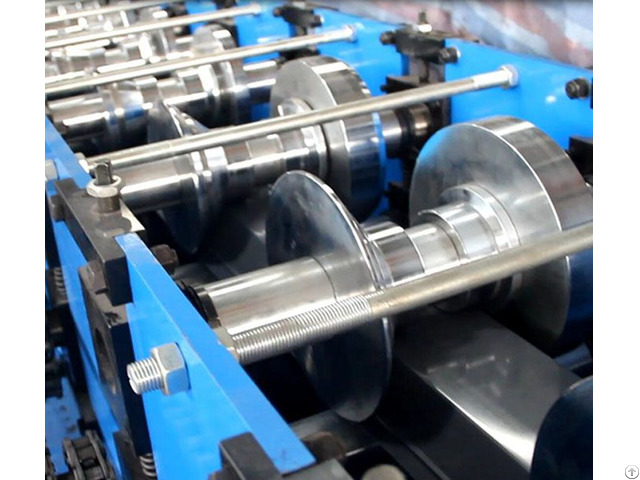

Main Forming machines (for panel width 65mm with reinforcemnt design ) 5.1 Forming Roller：24 stations, and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel：T.

18mm, A3 steel Heavy duty 。

5.3 Rolling speeding: 8-12 m/min。

5.4 Roller material：#45, overall quenching, hardness HRC55-60 ℃.

5.5 Motor power：7.5KW。 5.6 Main Roller ：￠65mm, 45 #。

5.7 Equipment base: 400# H type using welded steel plate.

5.8 Transmission: chain drive.

5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety.

And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Item top hat roll forming machine

Hat profile steel frames are lightweight steel frame.

Steel frame application

Steel frame is widely in using building.

there are skeleton frame, vertical steel columns, and horizontal beams.

adpot to support the floors, roof and walls of a building which are names as steel frame.

Galvanized steel frame can be roll formed as steel studs for use as a structural or non-structural building material for both external and partition walls in both residential, commercial and industrial construction projects.

The dimension of the room is established with horizontal track that is anchored to the floor and ceiling to outline each room.

Customized steel frame stud and track with reinforcement.

1 - The light steel skeleton is divided into two types: U-shaped skeleton and T-shaped skeleton, and is divided into people according to the load.

2 - The main components of the light steel skeleton are large, medium and small keels; the accessories have hanging parts, connecting pieces and hanging inserts.
