Excavator Long Reach Boom And Arm With Bucket - China

Product advantage of long excavator boom and arm: 01 Use Q355B material, 02 Adopts precision steel pipeline

03 Adopt alloy copper sleeve big arm base

04 Two layers groove welded to ensure

05 Double quality inspection before leaving

06 The tolerance of position size within 1 mm

07 Angle of boom and arm can reach 163° The specification of excavator boom stick Excavator Ton Total Length(mm) (A)Boom(mm) (B)Arm(mm) Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)

11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T

20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T

20-30T 18000 10000 8000 17300 13000 17200 14000 0.4-0.7 12T

35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T

40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T

40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1 The excavator boom and stick long introduce One of the most commonly used excavators is the long reach excavator.

The long reach excavator is a tracked machine that has a bucket on its boom or arm.

This machine offers great outreach, and can dig deep into the ground, making it suitable for a variety of applications.

Just like all excavator types, the long reach excavator can be seen at every major construction or mining site.

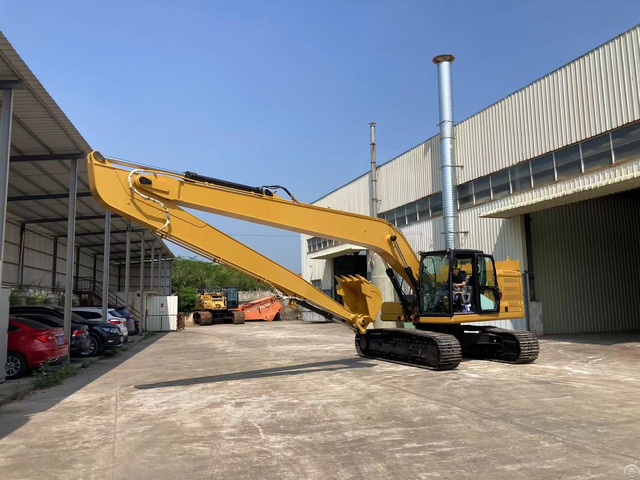

The pictures of excavator long arm for caterpillar
