Ym 80 Walk Behind Self Propelled Hydraulic Road Roller Compactor - China

china coal-0001

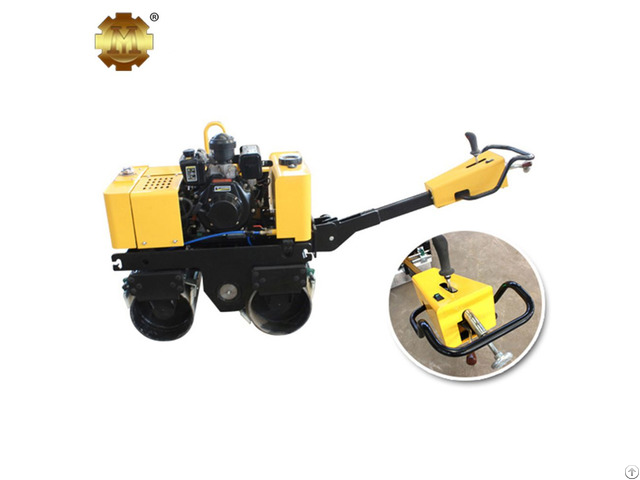

Introduction of YM-80 Walk Behind Self-Propelled Hydraulic Road Roller Compactor

YM-80 Walk Behind Self-Propelled Hydraulic Road Roller Compactor both drums drive and vibration.

Therefore the YM-80 Walk Behind Self-Propelled Hydraulic Road Roller Compactor is suitable for a wide range of soil and asphalt compaction applications.

The radius of this roller is small, can work in small area.

Features of YM-80 Walk Behind Self-Propelled Hydraulic Road Roller Compactor

1 - Famous hydraulic system

2 - Excellent welt

3 - Hydraulic Steering, light and flexible

4 - Import of reversing handle

5 - HONDA petrol or diesel engine, international brands, brandname quality assurance, superior performance, easy Start; Walk behind Road Roller Vibrator

6 - The use of international brandname SAUER hydraulic drive unit, variable speed, reversing convenient;

7 - Handrails using plane gear adjuYMing mechanism, flexible, can adapt to different height workers to operate;

8 - NSK Bearings by internationally renowned, MITSUBOSHI/CONTITECH belt, to ensure that the work performance of the machine;

Parameter of YM-80 Walk Behind Self-Propelled Hydraulic Road Roller Compactor

YM-80

Compaction Engine

Static linear load 51.5/53.5N/cm Engine Model HONDA

Nominal amplitude 0.5mm model GX390

Vibration frequency 55Hz TYPE Air cooling 4 Stroke OHV single cylinder

Exciting force 20kN Power 13.0hp/3600rpm

Water tank 25L Hydraulic oil tank 5.5L

Working Lubricating oil quantity 1.7L

Drive variable piston pump, fixed displacement hydraulic motor Fuel consumption 280g/kwh

Vibration Control mechanical drive Walk

Size specification Walk Speed 0—3.5km/h

Steel Wheel Size 635mm*350mm*2 Climbing Capacity 30%

Package Size 1300x720x1980mm More Models of Road Roller Model YM80 YM80C YM80S

Engine model HONDA GX390 CHANGFA 180F Fuzhou Jinfeiyu RD90N-1

Fuel type Gasoline Diesel Diesel Water cooling

Power 13.0HP/9.7KW 6.4HP/4.8KW 8.0HP/5.88KW

Fuel capacity 28L 28L 28L

Static line load 58/63 N/CM 59/64 N/CM 61.5/65.5 N/CM

Vibration frequency 65HZ 65HZ 60HZ

Nominal amplitude 0.5mm

Exciting force 20KN

Water tank capacity 30L 30L 30L

Walking speed 0-3.5KM/h

Climbing ability 30%

Hydraulic oil capacity 6.5L 3.5L 10L

Drum size 500*700mm

Weight 788KG 790KG 800KG
