Vertical Expose Fan Coil - China
price: 660.00 Dollar US$

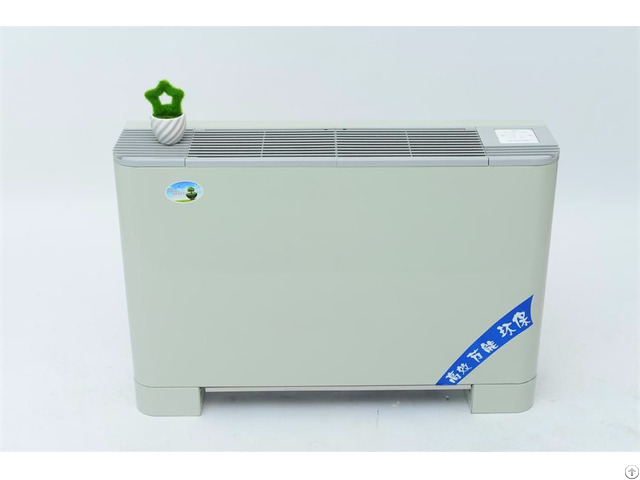

Name: Vertical Expose Fan Coil
Model HLC-51VE HLC-68VE HLC-85VE
Air flow(m3/h) High speed 510 680 850
Medium speed 383 510 638
Low speed 255 340 425
cooling capacity High W 2700 3600 4500
BTU 9215 12287 15359
Medium W 2440 3290 4120
BTU 8328 11229 14062
Low W 2010 2650 3320
BTU 6860 9044 11331
heating capacity High W 4050 5400 6750
BTU 13823 18430 23038
Medium W 3520 4530 6040
BTU 12014 15461 20615
Low W 2470 3130 4170
BTU 8430 10683 14232
Cooling water temperature 7℃-12℃
Hot water temperature 40℃-60℃
AC220V/50Hz
Heat Exchanger Type copper pipes covered into aluminum fins, fin pitch 2.2mm
Water supply kg/h 482 655 814
Water resistance kPa 30 30 30
Working pressure 1.6MPa
Low static
pressure FCU Input power w 52 62 76
Motor power w 16 20 25
High static
pressure FCU Static pressrue
30Pa Input power w 59 72 87
Motor power w 20 25 30
Static pressure
50Pa Input power w 66 84 100
Motor power w 25 30 40
Fan motor quantity 2 2 2
Noise
dB(A) Low static pressure ≤39 ≤41 ≤43
High static pressure 30Pa ≤42 ≤44 ≤46
High static pressure 50Pa ≤44 ≤46 ≤47
Pipe Inlet/outlet water pipe ZG3/4 "internal thread
Condensation water pipe ZG3/4" external thread
Dimension L mm 1000 1200 1300
W mm 270 270 270
H mm 645 645 645
20GP container loading quantity 189 158 146
40GP container loading quantity 373 311 287
