Aot Prefab Camp Buildings - China

AOT, a brand of PEBs, Prefabricated house and Modular container house, is Trusted & Tested.

AOT is the professional manufacturer of Prefabricated building / Prefab house.

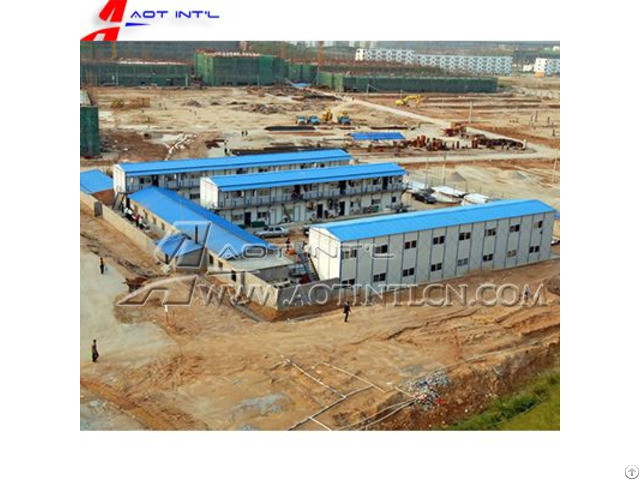

Prefabricated building / Prefab house are used for diverse applications such as Prefabricated camp building; Construction accommodation camps; Defense & Military Labor camps; Mining & gold labor camps; Oil & Gas workers camps; Prefabricated office building; Prefabricated hospital & clinics; Prefabricated classroom; Prefabricated accommodation building; Prefabricated Kitchen & Canteen; Prefabricated Sanitary & toilet & shower building; Temporary building; Prefabricated recreation building and many more.

Prefabricated building / Prefab house is built with light steel frames and kinds of sandwich panels.

Basically there were 2types of prefab house system: K type prefabricated house and T type prefabricated house.

The columns are double C section profile steel, and rafter is pre-welded tri-angle beams.

The roof and wall panels could be Rockwool, Fiberglass or EPS insulated sandwich panels with different thickness like 50mm, 75mm or 100mm.

Comprising with other components like light steel doors, Aluminum / PVC windows, gypsum board suspended ceiling, plastic floor leather, electrical system and Sanitary facilities & plumbing etc.

to be a self-contained temporary house units.

The main difference of T type prefab house from K type prefab house is the steel columns are invisible from outside, thus appearance is better and there will be a better airtightness performance to make the insulation good for heat, wind and sand, it widely used in sandy weather like Middle east and rainy weather like South Asia.

Another important difference is T type prefab house is total customized according customers’ requirements, it could be built with any dimensions to fit the site condition properly.

The main columns will be the square tube while the rafter is same pre-welded tri-angle beams.

AOT Prefabricated house technical specifications

Steel Column 2C80*40*15*1.5 painting

Tri-angle beam Pre-welded C80*40*15*1.3/U50*35*1.3 electro-Galv.

First floor main beam C80*40*15*1.5/U50*35*1.2 electro-Galv.

First floor secondary beam C80*40*15*1.3 electro-Galv.

Roof purlin L40*3 electro-Galv.

Ground channel steel C80*40*15*1.3 electro-Galv.

Steel staircase Square tube 30*30*2.0/40*40*2.0, 2.5mm checkered plate painting

Steel Corridor 1.8mm galv.

steel plate/L40*3/tube 40*20*1.0 painting.

Roof panel 50mm/75mm/100mm Fiberglass/Rockwool/EPS sandwich panel

Wall panel 50mm/75mm/100mm Fiberglass/Rockwool/EPS sandwich panel

*Suspended ceiling 6mm gypsum board with frame (*Optional)

First floor board 18mm plywood board

*Floor leather 1.5mm PVC floor leather (*Optional)

*Electrical system Cable/Lights/Switch/Socke t/PDB (*Optional)

*Sanitary facilities&plumbing Ceramic toilet/washbasin/shower, input&output pipes (*Optional)

Company Contact:

• Posted By: AOT INT'L Steel Structure Buildings

• Phone: 13370805370

• Address: No.192 International trade building Chengyang, Qingdao , Shandong , China

• Email:

• Website: https://www.aotintlcn.com

• Business Description: AOT, a brand of PEBs, Prefabricated house and Modular container house, is Trusted & Tested.

  As experts on Pre-engineered steel structure building, Prefabricated house and Modular container house system, AOT is providing complete customized solutions including consulting, R&D, design, manufacture, installation, supervision service for overseas project, export and service.

  We specialize in creation of high-quality Pre-engineered steel structure building such as: warehouse, workshop, factory, cold storage, high-rise building, shopping mall, power plants, distribution centers, pedestrian bridge, hotels, public schools, sports arenas, car parking center, airplane hangars, church building, farm building, agricultural building, storage shed, self-storage building, poultry farm and green house; Prefabricated house and Modular Container house such as: portable cabin, labor camp, labor quarter, worker dormitory, construction site office, accommodation, recreation, clinic, medical facilities, quick-assemble container, sanitary container, toilet container, shower container, canteen, portable living units, portable office.

  We provide our time-tested PEBs, Prefabricated house and Modular container house to clients in the sectors of oil & gas, mining, Energy, Infrastructure and Construction projects.

  AOT built his reputation upon Profession, Reliability and Service.

  Headquartered in Qingdao, China, supported by our dedicated teams with more than 10years extensive knowledge of Pre-engineered steel structure building, Prefabricated house and Modular container house, AOT has carried out 100+ projects in more than 30 countries.

  With the brand-building concept, AOT has built long lasting partnerships with different private international companies as well as organizations & government.
