Heavy Hammer Crusher Stone Crushing Machine - China

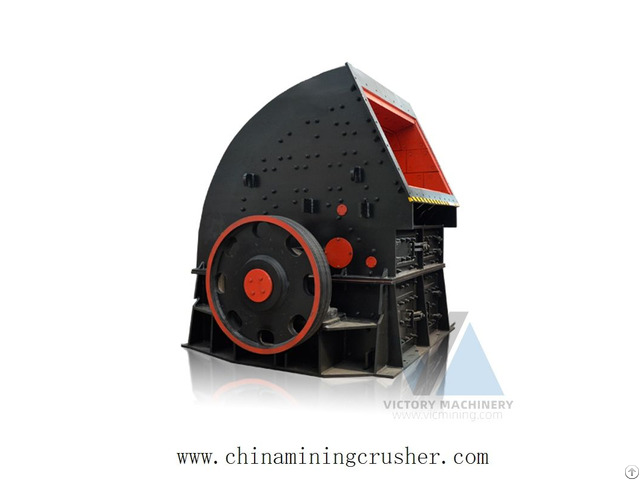

PC600x400 Hammer crusher PC600x400 Hammer crusher is suitable for mid-hard and light erosive materials, whose pressure resistance strength is no more than 100Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, blocks, limestone, etc.

Working principle: Hammer crusher mainly consists of frame, rotor, trapezoidal iron plate, bar grate, etc.

And the frame consists of the upper part and the lower part, which are made of welded cut armor plate, while other parts are connected into one by bolts.

High manganese steel liners are mounted in the frame and can be replaced after wearing out.

There are several sets of hammers equipped on the main shaft of the hammer crusher in regular distribution.

They constitute the rotor with dial and hammer shaft.

Driven by the motor and V-belt, the main shaft rotate with rotors.

And the rotors spread to the surrounding extensions under the centrifugal force brought from rotating.

So when big materials fall into the crushing cavity of hammer crusher, they will be broken into pieces by high speed rotors.

The qualified materials after crushing will be discharged from the gap of grate at the bottom, while those unqualified ones will still stay in the crushing part and then discharged when they reach the acceptable size after repeated actions of hammers and trapezoidal iron plates.
