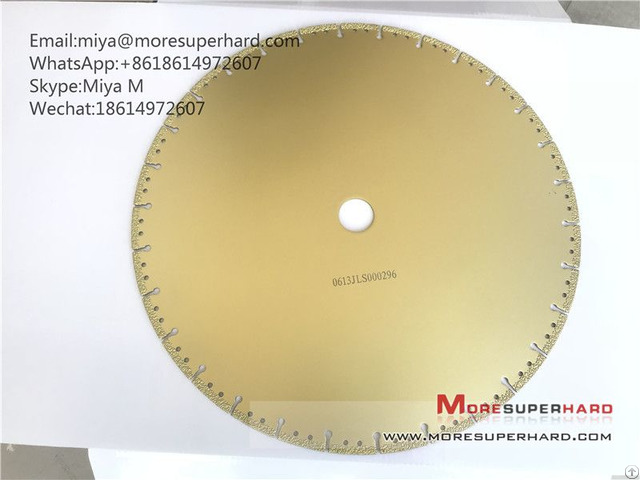

Vacuum Brazed Diamond Saw Blades For Cutting Marble Etc Miya - China

vacuum brazed diamond saw blades for cutting Marble etc.

name: vacuum brazed diamond saw blade Introduction：Our vacuum brazed saw blades have continuous type and segment type.

They are used for cutting Marble, cast iron, Ceramics tiles, hard composite materials such as concrete with rebar, Metal processing, Fiber Glass and PVC pipe, etc

Application：cutting Marble, cast iron, Ceramics tiles, hard composite materials such as concrete with rebar, Metal processing, Fiber Glass and PVC pipe, etc Type: continuous and segment Advantages of vacuum brazed diamond saw blades:

* Single Layer Of Fully Exposed Diamond Fused With Nickel At High Temperatures And Sharp Cutting

* Small cutting gap and less chipping

* Up To 40 Times Longer Life Time Than Resin Grinding Disc.

the efficiency is improved by 100% for cutting FRP slab

* Higher Quality Process Than Sintered or Laser Welded Diamond Wheel.

The efficiency is improved by 35% for cutting marble slab

* No Pollution, Low Noise, Never Need Dressing

Specifications of vacuum brazed diamond saw blades:

Model D (mm) H (mm) T (mm)

vacuum brazed diamond saw blade 100 22.23 1.2 115 22.23 1.2 125 22.23 1.2 150 22.23, 25.4 1.2, 2.4 180 22.23 1.6 230 22.23 1.8 350 25.40, 32 2.0 400 25.40, 32 2.2, 2.6

Grain Size: Rough 25/30, 30/35, 35/40, Finish 50/60

Others Size And Grit Can Be Customized According To Customers' Requirement.

Product parameter：

1 - Application for cutting concrete, steel, iron, brick, block, masonry and stone

2 - Aopt the technology of vacuum brazing diamond, improving work efficiency and lengthening lifetime, it's a better position to save energy.

3 - General purpose cutting with fast speed

4 - Normal size from dia.

12" to 20" color and size available as required.

Outer diameter Arbor size segment diamension

12"(300mm) 1"(25.4mm) 40*3.2*10

14"(350mm) 1"(25.4mm) 40*3.2*10

16"(400mm) 1"(25.4mm) 40*3.6*10

18"(450mm) 1"(25.4mm) 40*3.8*10

20"(500mm) 1"(25.4mm) 1"(25.4mm) 40*4.0*10 If you need any products, do not hesitate to contact: miya AT moresuperhard DOT com we also have a series of brazing products, welcom to your consult and choose.
