High Quality Flexible Electroplated Diamond Sanding Abrasive Belts #60 #5000 - China

Quick Details

Customized support: OEM, ODM, OBM

Place of Origin: Henan, China

Brand Name: Boreas

Type: sanding belt

Application: Finishing, Grinding

Industries: Metal Implants, Turbine Engines

Material: Resin+Diamond Powder

Bonding: Resin over resin or electroplating

Abrasive: Diamond Grit

Usage: Used for stone, glass, ceramics, monocrystalline silicon etc

Grit: 60#~5000#;Customi zed, As your request

Advantage: High Working Efficiency

Feature: Long Life High Performance

Package: Paper Box Advantages

1)Application: Grinding , Polishing, Finishing, Deburring for the industries of metallurgy, machinery, automobile.

shipbuilding, aviation, light industry, timbering, furniture, building materials, tanning and textile, etc.

2)Butt joint, lap joint and waves joint can be made.

3)Our products carry long life, high efficiency, and safe operation

4)We use the world-class abrasive materials that come from VSM, 3M and CHINA MAINLAND.

5)OEM is available, large productivity, and we can make label for you.

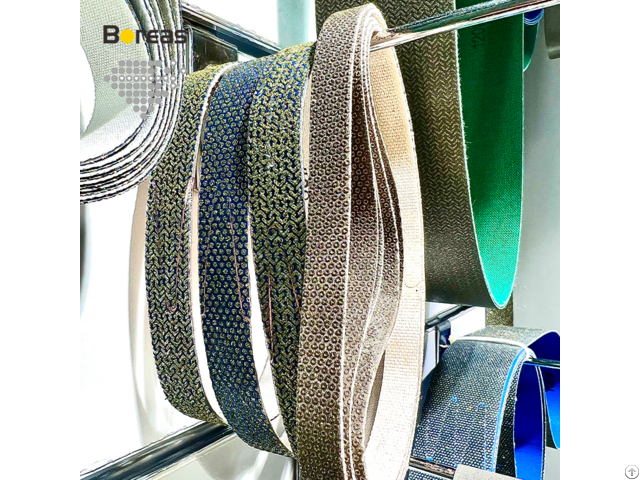

Diamond/CBN Sanding Belts

Applications: Suitable for grinding and polishing glass, stone, ceramic, hard alloy material and other hard hard materials.

With longer lifetime and sharper abrasive compare with traditional abrasive belt Available Size: Width: 5mm~350mm, Length: 150mm~5000mm Abrasive Particle Size: Diamond/CBN: 40#~5000# Electroplated Bond Diamond Abrasive Belts Specification: Width: 5~350mm, Length: 150mm~5000mm Application: Suitable for grinding and polishing the complex shapes of hard and brittle materials, such as stone, glass, ceramic, monocrystalline silicon, multi-gold silicon, synthetic materials, hard alloys, aluminum alloys, etc.

Diamond particles are bonded on the required coated pattern by nickel plating, which forms a sharp abrasive layer with very strong grinding force.

Resin Bond Diamond Abrasive Belts Descriptions: High-efficiency electroplated diamond abrasive belt for surface polishing.

Specification：Width: 5~350mm, Length: 150mm~5000mm, Grit: 40#~5000# Application: Used for grinding and polishing glass, stone, ceramic, hard alloy material and other hard hard materials.

With longer lifetime and sharper abrasive compare with traditional abrasive belt.

Resin bond belts divided into flexible and hard resin, according to the degree of hardness.

The flexible resin has good softness and flexible coating pattern, can better fit the surface of the workpiece, and has better polishing performance.

Because the resin is soft, wears quickly, and has poor temperature resistance, it is not suitable to make coarse-grained abrasive belts.

The flexible resin abrasive belt must be wet grinding, which also limits the application under certain conditions.

Resin diamond belts are mainly used in grinding and polishing hard materials.

Continuous layer of resin, diamond is all the way through the resin.

Differences between Electroplated Bond and Resin Bond: ● The grinding units of the belt's surface are different, electroplated belt is small dot pattern, resin diamond belt is rectangle pattern.

● The electroplated belt is more aggressive and sharp than resin diamond belt, but the resin diamond belt is more durable than electroplated belt.

● With same grit grade, resin belt have more better polishing effect on surface roughness than electroplated belt.

● The costs of resin belts is more expensive than electroplated belts.

● Grinding Force: Electroplated bond > Resin bond, Hard resin > Flexible resin Dry or wet grinding options: ●Electroplated diamond belt: Due to the good thermal conductivity of the metal bond, the grinding heat is quickly transferred to the substrate.

If heavy duty grinding without proper cooling can easily cause the strip to peel or break.

Wet grinding is generally recommended.

●Resin diamond belt: The resin bond has poor thermal conductivity, and the overall heat resistance will be better.

More suitable for dry grinding use, but also wet grinding use.

Company Contact:

• Posted By: Henan Boreas New Material Co., Ltd.

• Phone: 18128014010

• Address: Changchun Road, High-tech Zone, 郑州 , 河南 , China

• Email:

• Website: https://usboreas.com/

• Business Description: A leading manufacturer of synthetic diamond industry since 1990, dedicating in diamond materials for cutting, grinding, lapping, polishing applications.

  Advanced Equipment

  Advanced production & testing equipment, strong technical capability ensures all the products are produced strictly with the accordance of national standards, customized diamond products are available upon customers different requirements.

  Products

  Mai n Products: Mesh & Micron size Diamond Powders, crushed/milled/reshaped diamond powders,diamond coatings powder,diamond lapping paste,diamond sanding belt.

  diamond slurry,diamond flap disc,diamond hand pads,etc.
