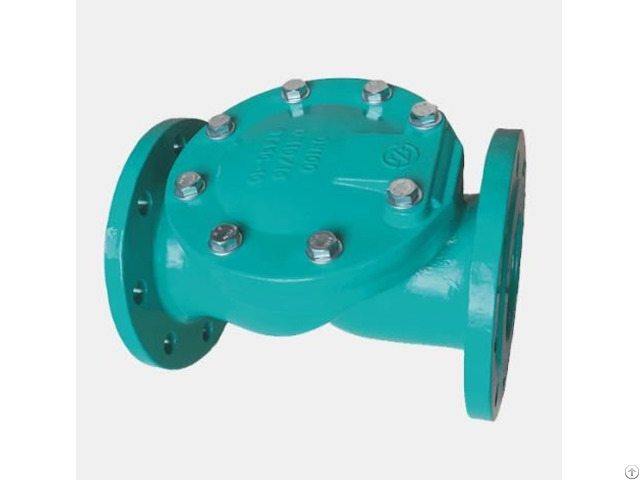

Flapper Check Valve - China

Basic information The double flapper check valve can be installed at the water outlet of the pump or the water outlet pipe to prevent backflow of the medium.

Features 1 - Switch can be up to 100, 000 times;

2 - Full flow area, low flow resistance;

3 - Less likely to accumulate debris;

4 - Simple structure and convenient maintenance.

Principle The sealing ring of this valve adopts the tilting design, and the closing time is short, which can reduce the water hammer pressure.

Installation and Commissioning The china swing check valve can be installed in sewage.

For specific use, please consult ZhengFeng Valve Group.

Part Material Standard Body Ductile Iron EN 1563/DIN 1693 Bonnet Ductile Iron EN 1563/DIN 1693 Disc Ductile Iron + EPDM / NBR EN 1563/ISO 4633 Seal EPDM / NBR ISO 4633 Nuts Stainless Steel 431 EN10088-1/ASTM A959 Bolts Stainless Steel 431 EN10088-1/ASTM A959 For the materials options not listed, consult factory.

ZhengFeng manufactures valves in more than 50 different alloys.

Product scope, Standards & Materials Size Range: 2"~24"

Pressure Rating: 10bar ~ 25bar

Face to Face Dimensions: AMSE B16.10, EN558-1

Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2

Coating: Fusion Bonded Epoxy Coating Inspection and Test: ISO 5208 / EN 12226-2
