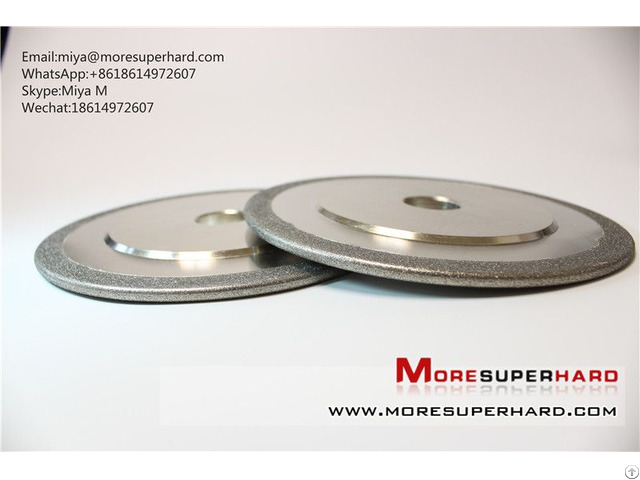

Electroplated Cbn Grinding Wheel For Metallic Materials Industry Application Miya - China

Name: electroplated diamond & CBN grinding wheel No dressing, Body can be re-plated several times

Introduction: Electropl ated diamond and Cubic Boron Nitride (CBN) tools are made up of a basic single layer or multi-layers (depending on application) of either diamond or CBN particles that are bonded to the tool surface using a nickel matrix.

The product can be made with various shapes and they are suitable for special complicated profile, surface grinding, Internal grinding, Slot grinding, Profile grinding and small and others form grinding.

Electroplated diamond and CBN tools are used for surface grinding, Internal grinding, Slot grinding, Profile grinding Ceramics, Glass, Tungsten Carbide, Ferrite, Chilled Cast Iron, Founded Alloy Steel, Titanium Alloy And etc Applications of electroplated bond grinding wheels:

diamond tools for non - ferrous industry application

* carbide (grinding green and sintered tungsten carbide)

* ceramic (grinding ceramics like SIC, AJO, ZrO, etc)

* automotive (grinding brake liners and cutting re-enforced rubber mouldings)

* pharmaceutical (grinding factitious knee joint)

* dental (profiling rubber bonded grinding pins)

* ferrite (grinding magnetic parts)

* chemical (grinding laboratory glass)

* graphite (grinding graphite parts)

* glass (grinding tubes, automotive components)

* Fiberglass, Plastics and Electronic components, etc

CBN tools for metallic materials industry application

* High-speed tool steels

* Die steel

* Hardened carbon steels

* Hardened stainless steels

* Alloy steels, Titanium Alloy

* Aerospace alloys

* Abrasion resistant ferrous materials, etc

Advantages of electroplated diamond & CBN wheels:

No dressing procedure necessary, Body can be re-plated several times

High geometric and proportion precision, Complicated forming

retain their original shape and dimensions throughout their working life

Simple electroplated process, less investment convenient manufacturing

Excellent surface roughness, high grinding efficiency, long tool life

free-faster cutting, no dressing, less heating due to the diamond particles protruding from the surface.

The Specification Of electroplated bond grinding wheels: Diameter(mm) Hole(mm) Blank thickness(mm) Return width Grit size Maximum RPM

16 3 0.3 5 200 20, 000

19 3 0.3 5 200 20, 000

20 3 0.3 6 200 20, 000

22 1.8 or 3 0.3 7 200 20, 000

25 2 or 3 0.3 9 200 20, 000

30 3 0.3 11 200 20, 000

38 3 0.3 11 200 20, 000

40 3 0.5 12 150 20, 000

45 3 0.3 17 150 20, 000

50 3 0.5 17 150 20, 000 common used spect: Specification

Shape Specification(Diameter) Grit

Plane grinding wheel 50~400 36#~2000

Irregular grinding wheel Less than 400 36#~2000

Electroplated grinding dot 0.15~50 36#~2000 Advantages of electroplated diamond & CBN wheels:

1 - No dressing procedure necessary, Body can be re-plated several times

2 - High geometric and proportion precision, Complicated forming

3 - retain their original shape and dimensions throughout their working life

4 - Simple electroplated process, less investment convenient manufacturing

5 - Excellent surface roughness, high grinding efficiency, long tool life

6 - free-faster cutting, no dressing, less heating due to the diamond particles protruding from the surface.

Please provide us details when you order, For example, Product needed: Resin bond diamond grinding wheel

1) Diameter (25, 40, 100, 200, 300…750mm)

2) Hole/state bore dimension 3) Thickness (4/5/6/8/10/…40/50/60mm )

4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A 2/12A2/11V9/4A1/14A1…)

5) Grit size (16/18, 18/20…40/45, 80/100…325/400 - In GB or ISO standard)

6) Other request Please don't hesitate to contact me if you have any needs: miya AT moresuperhard.

com
