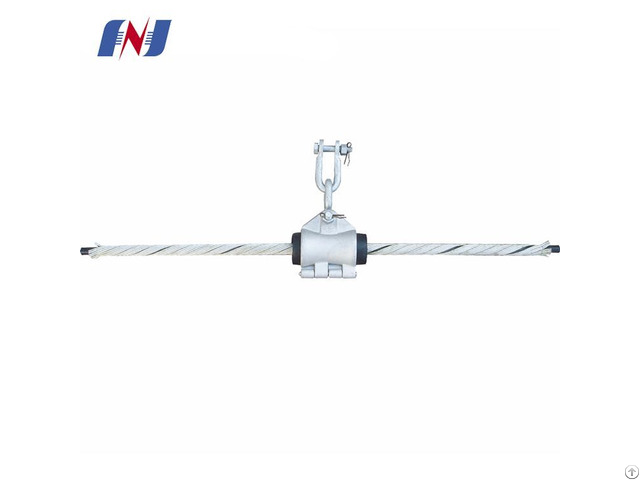

Adss Preformed Short Span Tension Clamp - China

Composition: twisted wire, rubber insert, cast aluminum shell, right-angle shackle, U-shackle.

Product Description

Composition: twisted wire, rubber insert, cast aluminum shell, right-angle shackle, U-shackle.

Purposes: supporting cable, make the ADSS hang on the tower.

Features: 1 - Component: preformed wire, rubber inserting, casting aluminum shell, right angle shackle, U shackle etc.

2 - Usage: supporting, make ADSS cable hang on the pole and tower.

3 - Features: a, stress on average, no concentration stress, protect cable better and increase the stiffness of cable in the mount point.

b, good dynamic stress.

It can provide enough grip strength(10%RTS) c, rubber inserting make abrasion low.

d.

excellent aluminum alloy improve the mechanical and resist-corrosion function, extend life.

Technical requirements: meet the DL / T 766-2003 ADSS with the preformed helical fittings technical requirements and test methods.

More information please visit our website Ordering Information: a.

We design 150m span suspension clamp for meeting to erect ADSS cable on 10KV transmission line.

it is simple structure, easy installation, can also reduce the project cost.

b.

Choose suitable QX preformed suspension clamp according to ADSS fiber optic cable span, diameter, nominal tensile strength parameters c.

the number of configurations as follows: 1 set / line tower.

d.

Clamp strength: 30kN.

ADSS with QX preformed tangent clamp Specifications Model Parameter table:

Model span(m) twisted wire length(mm) Clamp quality(kg)

AQX-150-** 150 800 1.7

Note: **-- on behalf of Cable diameter (mm)
