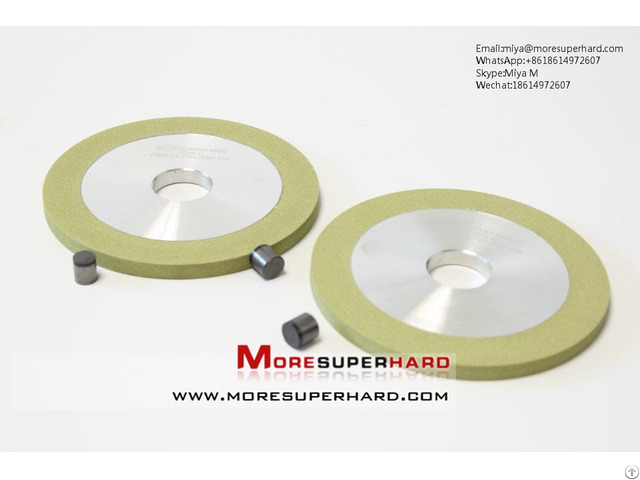

1a1 Vitrified Bond Diamond Grinding Wheel For Ceramic Pcd Tools Miya At Moresuperhard Dot Com - China

Name : vitrified bond diamond grinding wheel for ceramic for PCD tools Introduction:

Vitrified bond diamond grinding wheels possess pretty high abrasive resistance, especially in polishing hard and brittle workpiece.

It has many advantages like small grinding force, low operating temperature, high grinding precision, excellent workpiece's surface grinding, etc.

Therefore, vitrified bond diamond grinding wheel will express the better advantages in the future.

It is recognized as a high performance grinding wheel with the higher speed, higher efficiency, higher precision, lower abrading cost and lower pollution.

Based on these superiorities, vitrified bond diamond bruting wheel is widely used in wafer, PDC, PDC, diamond cutter, CBN, cemented carbide, new engineering structural ceramic, diamond, jewel, crystal, rare earth materials and another hard-brittle materials' machining operation.

Application : Mainly used for machining tungsten carbide, ceramic, cermets, optical glass, PCD, PCBN, CVD, natural diamond, stones and so on.

Type: 6A2 1A1 14A1 3A1

Features: 1 - high speed, 2 - high efficiency, 3 - high precision, 4 - low grinding cost performance, Specifications of vitrified diamond grinding wheel: Model D(mm) T (mm) H (mm) W (mm) X (mm)

6A2 150 40 32, 40 5, 10, 15, 20 10 125 40 32, 40 5, 10, 15, 20 10 100 40 20, 32, 40 3, 5, 10, 15, 20 10

Grit: 325/400, W40(500#), W28(600#), W20(800#), W10(1500#), W5(3000#), W3(5000#)

Model D (Mm) T (Mm) H (Mm) X (Mm) U (Mm) 300 20 127 10 10 350 20 127 10 6 400 35 152.4 10 7

Other Specification Can Be Made According To Customers Requirement.

Sales AT Moresuperhard DOT Com

Grain Size Selection Of Vitrified Diamond Grinding Wheel: Grain Size Machining Type Application

W40 (500#, D35), W28 (600#, D20) Rough Regrinding A Blade Edge Profiling And Sharpening Of Much Worn Inserts

W14 (1200#, D15) Universal Standard Grain Size-Can Also Getting A High Sharpening Efficiency, Good Quality Machined Surfaces .

W10 (1500#, D15) Finish Finishing Grinding – Getting A Very Good Quality Of Machined Surfaces.

W5 (4000#, D3) W3.5 (5000#, D1) Super Finish Super Finish Grinding – Getting A Brilliant Quality Of Machined Surfaces.

Others Grit Can Be Made According To Customer’s Requirements: Sales AT Moresuperhard DOT Com Model D (Mm) T (Mm) H (Mm) X (Mm) U (Mm) 1A1 80 10 32 8, 10 150 10 32 10 155 10 32 10 160 10 32 10, 12 170 10 32 10, 12, 14 175 10 32 10 220 10 32 20 14A1 170 10 32 10, 12, 14 5 175 10 32 10, 15 5

Grain Size : MD20, MD40, MD60, MD80

MD-20: Fine Polishing, Perfect Shining Performance And Long Life For Polishing Small Diamond (10 Points- 1carat)

MD-40, MD-60: Rough Polishing, High Efficiency Polishing And Sharp Cutting For Big Diamond.

(1ct, 1.2ct And 1.3 Carat, Etc)

MD-80: Rougher Polishing, Higher Efficiency And Sharp Cutting For Bigger Stones.

(2 Carat And 3 Carat, Etc) Advantages of vitrified diamond wheels for PCD and PCBN tools :

* The porous structure of the abrasive improved diamond exposure and Can Prevent Vertical Streaks On Workpiece And Improve Surface Quality

* Accurately control geometric tolerances to make a good abrasive layer

* Good Self-Sharpening, High Grinding Efficiency, High Wear Resistance And Less Abrasive Grain Consumption

* High Precision Workpiece.

PCD Tools Can Reach High Efficiency, Good Surface Finish And Edge No Chipping

* Vitrified Bond Wheels Offer Tool Life Greater Than 150 Times That Of A Resin Bond Wheel And Can Be Easily Trued And Dressed On The Machine

Material: Diamond /CBN

Size: 150x20x40x40x10 Please provide us details when you order, For example, Product needed: Resin bond diamond grinding wheel

1) Diameter (25, 40, 100, 200, 300…750mm)

2) Hole/state bore dimension 3) Thickness (4/5/6/8/10/…40/50/60mm )

4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A 2/12A2/11V9/4A1/14A1…)

5) Grit size (16/18, 18/20…40/45, 80/100…325/400 - In GB or ISO standard)

6) Other request Please don't hesitate to contact me if you have any needs: miya AT moresuperhard.

com Please don't hesitate to contact me if you have any needs: miya AT moresuperhard.

com
