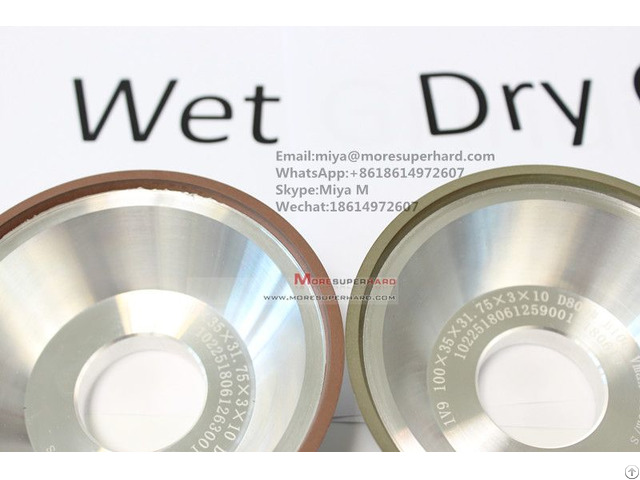

11v9 Resin Bond Diamond Grinding Wheel For Carbide Tools Wet And Dry Made In China Miya - China

Name: Resin Bond Diamond Grinding Wheel for Carbide Tools Introduction: Resin Bond Grinding Wheels Are The Most Commonly Used Super Abrasive Product Currently.

Our Resin Diamond Wheel Is Suitable For Surface Grinding, OD Grinding, Centerless Grinding, Tool Grinding, Fine Grinding, Double Disc Grinding And Slot Grinding Of Most Precision Workpieces.

Application : Resin Bond Diamond Grinding Wheel Is Mainly Used For Machining Tungsten Carbide Cutting Tools, Ceramic, Magnetic Materials, Silicon, Glass, Carbide Tools, Quartz And Thermal Spraying Alloy, Etc

Type: 1A1, 6A2, 14A1, 3A1, 11V9, Etc Features: Resin Bonded Diamond Wheels

1 - High performance

2 - Engineered to your operation

3 - Cool cutting action

4 - Guaranteed Consistency

5 - Excellent for grinding carbide inserts and other tools Advantages Of Resin Diamond Grinding Wheel:

* High Cutting Efficiency, Good Self-Sharpening, Less Blocking, Reducing The Grinding Burn Occurs When The Phenomenon Of Work

* Good Flexibility Will Help To Improve The Surface Roughness, Mainly Used For Rough Grinding, Semi-Fine Grinding, Polishing And Other Processes

* Compared To Conventional Silicon Carbide, Resin Diamond Wheel Has Good Material Removal Rates, Longer Wheel Life And Lower Grinding Costs

* Resin Bond Diamond Wheels Generally Remove Material Up To Ten Times Faster Than Metal Bond Wheels

Feature Sharp, wear-resisting, polishing effect is good, stable quality, good diamond

Machine Straight edge machine, beveling machine, bilateral machine, numerical control machine, Sunnen

Market Germany, Italy, India, Pakistan, Iran, United Kingdom, Belgium, Australia, Turkey, U.A.E, South Africa, Poland, Japan, Tai wan, The United States, Canada

Certification ISO9001: 2000 Certificate

Outer Diameter 25-750mm

Grit number 45-426 Specifications Of Resin Bond Diamond Grinding Wheel For Thermal Spraying:

Diameter (Mm) Diameter (Inch) H (Mm) T (Mm) X (Mm)

25 1 Inch 6 12 6

30 - 12 6 -

40 - 12 6 -

50 2 Inch 6 12 6

100 4 Inch 12 12 10

150 6 Inch 12 25 10

300 12 Inch - 25 10

400 16 Inch 127 25, 50 10, 25

500 20 Inch 127, 203.2 25, 50 10, 25

600 24 Inch 254 25, 50 10, 16, 25

750 30 Inch 304.8 50 10

914.4 36 Inch 304.8 25, 50 10, 25

1100 43 Inch 304.8 50 10 Resin Bond Diamond Grinding Wheel Is Mainly Used For Machining Tungsten Carbide Cutting Tools, Ceramic, Magnetic Materials, Silicon, Glass, Carbide Tools, Quartz And Thermal Spraying Alloy, Etc TYPE Diameter HIGHT Hole WIDTH

6A2 100 40 20, 32, 40 5-15

6A2 125 40 32, 40 5-15

6A2 150 40 32, 40 5-15

11A2, 12A2 100 40 20, 32, 40 5, 10

11A2, 12A2 125 40 32, 40 5-15

11A2, 12A2 150 40 32, 40 3, 5, 10

Resin diamond diamond grinding wheel used carbide tools 1A1 80 10 32 8, 10 150 10 32 10 155 10 32 10 160 10 32 10, 12 170 10 32 10, 12, 14 175 10 32 10 220 10 32 20

14A1 170 10 32 10, 12, 14 175 10 32 10.15 Please provide us details when you order, For example, Product needed: Resin bond diamond grinding wheel

1) Diameter (25, 40, 100, 200, 300…750mm)

2) Hole/state bore dimension 3) Thickness (4/5/6/8/10/…40/50/60mm )

4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A 2/12A2/11V9/4A1/14A1…)

5) Grit size (16/18, 18/20…40/45, 80/100…325/400 - In GB or ISO standard)

6) Other request Please don't hesitate to contact me if you have any needs: miya AT moresuperhard.

com

Our company also produces a series of diamond and CBN tools, welcome to consult and choose at any time
