W Beam Highway Guard Rails - China

W-beam guardrail has a section or profile of W shape, it is also named as two wave beam guardrail.

This is the major type of beam barriers for highways safety with symmetrical designs on each side of the beam.

We supply two kinds of finishes for W beam guardrail panels: hot dipped zinc coating or plastic coating.

According to the fabricated shapes, our W-beam guardrails can be divided into two types: the straight line w-beam, or the curved beams.

How to choose straight W beam or Curved Beam used for your uses?

The straight W-beam guardrail can be lined up for transitioning smoothly and is suitable to the curves with a radius greater than 45m.

For the radius less than 45m, the pre-curved W-beam guardrail product exploits its advantages to a full.

W beam guard railings can be used in expressway and highways to absorb maximum energy of the impact force when collision occures and reduce harms to cars and people.

It can also protect the vehicles against skidding off roads, especially mountain roads and bridges and prevent the pedestrians from the danger of walking across highways.

General Technical Information of W Beam / Two Wave Guardrail Barriers: Base Metal Material: steel: Q235 (S235JR / ASTM A283M) or Q345 (S355JR / ASTM A529M 1994) Standard specification: 380*85*2.75/3/4*4128/4320 mm or 306*80*2.75/3/4*4300mm Surface finishing: Hot dipped galvanized finish or powder coated.

Zinc coating thickness (double sides): 550 g/m2 (40µ) / 1100 g/m2 (80µ) / 1200 g/m2 (85µ) Relevant parts required for guard rails: post, spacer (C, U and Sigma types etc) and fasteners Profile: W-beam / two wave.

Plate Thickness: 2.5mm-4mm Thickness Tolerance: +/-0.015mm Popular Specification of W Beam Guardrails:

Wave width: 310mm

Wave height: 85mm

Plate thickness: 2.5mm - 4mm

Beam length: 4320mm Scise Most Popular W Beam Guardrail System ( beams and necessories parts for installing ) for Export is composed as following: Guardrail W-Beam Galvanized including bolts, nuts and washers;

Guardrail Steel Post, Box Beam;

Guardrail End Units;

Guardrail Terminal Units;

Hot Dipped Galvanized Steel Guardrail W Beam;

Hot dipped galvanized terminal section;

Hot dipped galvanized round steel post;

Hot dipped galvanized post cap;

Hot dipped galvanized black spacer;

Hot dipped galvanized flat plate washer;

Hot dipped galvanized bolts.

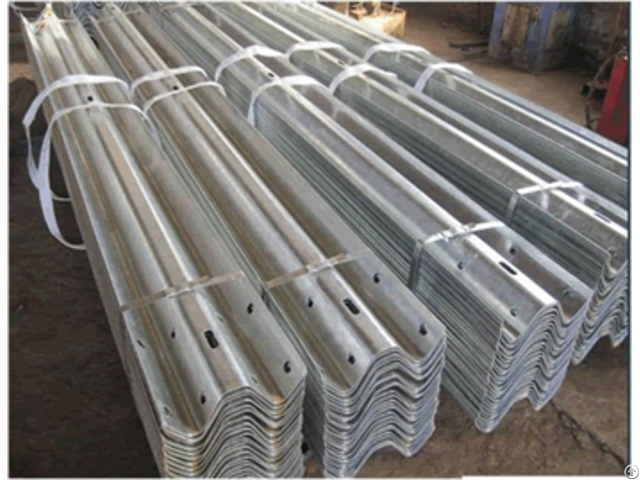

Packing 1.

)25 pieces metal beam road guardrails per bundle, and then fasten the bundle with wire straps or hemp ropes.

2.

)One 20 feet GP will hold about 510 pieces.

3.

) Customers' requirements are available, too 12 Gauge W Beam Highway Guard Rails

We supply w wave corrugated metal beam 12 GAUGE(2.7P MIN.

) for high way guard rails & bridge rails, AASHTO M 180 standard specifications and other international qualities.

The system contains W-beam rail element, backup plates, and terminal sections, the 12 gage steel formed into a beam minimum 12 inches ( 300 mm) wide and 3 inches (75 mm) deep.

The 6 inch channel rail and splice plate are manufactured in conformance with AASHTO M 183 - AASHTO is simplified term of American Association of State Highway and Transportation Officials.

Quality meeting Division 12 --1204 for metal beam guard rail of Kuwait and other other international qualities are also supplied.

Physical properties of the materials is as follows: Tensile Strength: 483 MPa (min)

Yield Strength 345 MPa (min)

Elongation 12% (min).

Guard rails is supplied with Mill Test certificates of the materials.

12 Gauge Beam Guardrails: Elements and Parts Steel Quality as per Grade Fe 410 or equivalent for W Beam.

Hot Dip Galvanizing as per AASHTO M180, 550 gm/m2.

Metal beam corrugating type: W beam

Company Contact:

• Posted By: SciSe Highway Barriers Co.

• Phone: +86-534-2650118

• Address: No.188, Xicheng District, Heping Road, Dezhou , Shandong , China

• Email:

• Website: https://www.guardrailbarrier.net

• Business Description: SciSe is a China manufacturer and exporter of Guardrail Barrier products for expressway, bridge and highway traffic safety.

  Our products range from the guard rail highway barriers, sound barriers and fences to the various accessories for installation of barriers and fences.

  We use choic cold processing steel strip to make quality guardrail panels for our customers, going through flattening, punching, galvanizing or plastic coating, fabricating and shearing process.

  The guardrails can be traditional beam type solid guardrail panels or economic cable guardrails.

  The steel guardrail panels are made of corrugated plates in symmetrical shapes of waves.

  It is either concave (bowing away from the traffic lane) or convex (bowing towards the traffic lane).

  The guardrail beams we supply are 10 gauge and 12 gauge materials, ranging from 5 to 60 radius.

  Made from strip steel coils, the guardrail panels have a normal thickness of 2mm to 10mm.

  Metal fittings we supply include brackets, beam posts, columns and terminals for completing a full guardrail barrier system.

  We supply and manufacture beam guardrails in accordance with China National Standard JT/T281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M-180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL-RG620 (German) or any other International Standards.

  The base steel we use meetsSteel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr.

  D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).

  Scise Featured Products: Highway Guardrails

  Where the Guardrail Barriers are Used:

  Highway guardrail is commonly used as a passive barrier system for highway traffic security.

  The steel guard railings are installed widely along the roadway and highways, especially at curves and slopes, parking lots, road corners, dead end street and other site that may cause danger or accident to people or cars.

  How the Guardrail Panels Work:

  Guardrail panels fixed along the expressway can guide the direction of the vehicles and keep them running within the safe limit.

  In case any traffic accidents happen such as vehicle collision, the guardrail barrier will play an important role by decelerating the speed of the collided vehicles.

  Due to the designed curved shape of the guardrail panels, they will allow a slowing down of the crashed vehicle without hurting it seriously.

  In this way, the guard rails can reduce the danger level of the involved vehicles by keeping them safely within the road, allowing them slow down and directing them back to the right way.

  What are popular surface treatments for the guardrail beams:

  We supply three types of steel guardrail beams according to the finishes:

  Common galvanized steel guardrails , zinc coating quantity at about 550 gram/ m2 (40µ);

  Heavy hot dipped zinc plated guardrails, zinc coating quantity at about 1100 g/m2 (80µ) or 1200 g/m2 (85µ);

  PVC coated steel highway guardrails.

  Functions of the Surface Treatments to the Finished Guardrail Panels:

  Steel galvanized guardrail coated with zinc offers more durability and maximum strength.

  The zinc coating also prevents discoloration and weak points caused by rust and corrosion.

  The zinc or PVC coating enables the following five features for the steel guardrails:

  1, Anti-rusting;

  2, Anti-corrosion;

  3, Longer service life with protective coating layer;

  4, Ultraviolet proof;

  5, Anti-aging.

  Highway Guardrail Panels Types according to Beam Types:

  Type I.

  W-beam guardrails

  Type II.

  Thrie beam guardrails

  Type III.

  Square Box beam guardrail barriers
