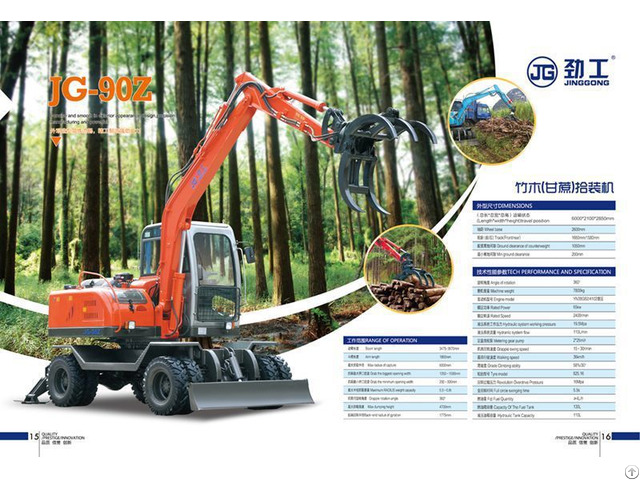

Wood Grab Excavator - China

Range of operation

Boom length 3475-3670mm

Arm length 1860mm

Max radius of capture 6000mm

Grab the biggest opening width 1250～1500mm

Grab the minimum opening width 200～300mm

Maximum RADIUS weight capacity 0.5～0.6t

Grapple rotation angle 360°

Max dumping height 4700mm

Back-end radius of gyration 1775mm

Dimensions

(Length*width*height)t ravel position 6000*2100*2850mm

Wheel base 2600mm

Track(Front/rear) 1660mm/1580mm

Ground clearance of counterweight 1060mm

Min ground clearance 200mm

Tech performance and specification

Angle of rotation 360°

Machine weight 7800kg

Engine model YN38GB2/4102

Rated Power 65kw

Rated Speed 2400r/min

Hydraulic system working pressure 19.5Mpa

Hydranlic system flow 110L/min

Metering gear pump 2*25ml/r

Grapple swing speed 15～30r/min

Walking speed 36km/h

Grade Climbing ability 58%/30°

Tyre model 825.16

Revolution Overdrive Pressure 16Mpa

Full circle swinging time 5.5s

Fqt Fuel Quantity ≥4L/h

Capacity Of The Fuel Tank 130L

Hydraulic Tank Capacity 110L
