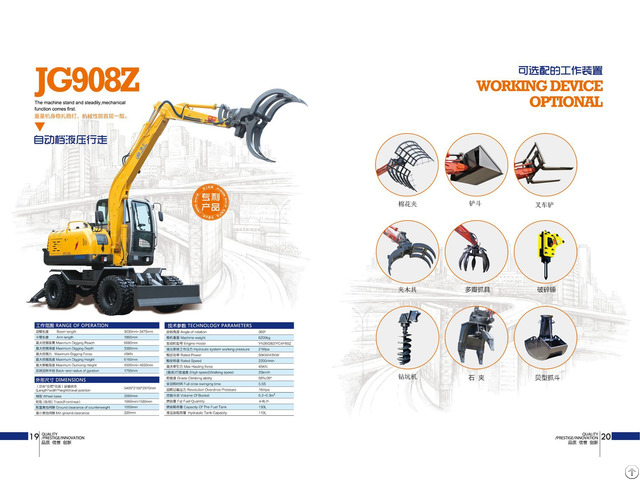

Multi Function Wheel Excavator - China

Range of Operation

Boom length 3030mm~3475mm

Arm length 1860mm

Maximum Digging Reach 6080mm

Maximum Digging Depth 3380mm

Maximum Digging Force 45KN

Maximum Digging Height 6160mm

Maximum Dumoing Height 4000mm~4650mm

Back-end radius of gyration 1750mm

Dimensions

(Length*width*height)t ravel position

5400*2100*2970mm

Wheel base 2560mm

Track(Front/rear) 1660mm/1580mm

Ground clearance of counterweight 1050mm

Min ground clearance 220mm

Tech performance and specification

Angle of rotation 360°

Machine weight 6200kg

Engine model YN36GB2/YC4F60Z

Hydraulic system working pressure 21Mpa

Rated Power 50KW/43KW

Rated Speed 2200r/min

Variable piston pump 71mL/r

Max Hauling force 45KN

Walking speed 25km/h

Grade Climbing ability 58%/30°

Tyre model 825.16

Volume Of Bucket 0.2-0.3m3

Revolution Overdrive Pressure 16Mpa

Full circle swinging time 5.5s

Fqt Fuel Quantity ≥4L/h

Capacity Of The Fuel Tank 130L

Hydraulic Tank Capacity 110L
