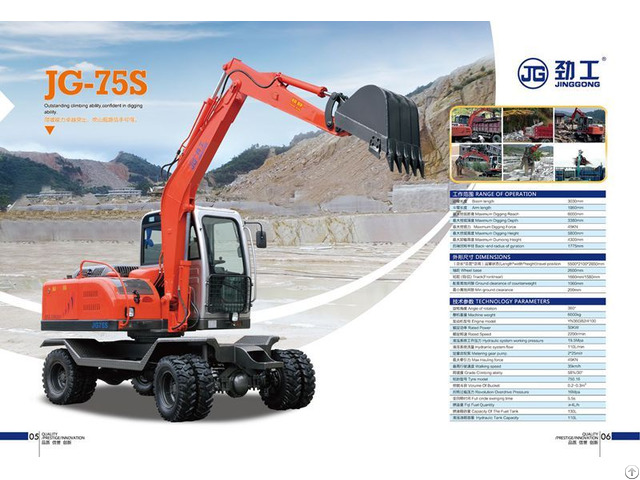

Compact Wheel Excavator - China

Range of operation

Boom length 3030mm

Arm length 1860mm

Maximum Digging Reach 6000mm

Maximum Digging Depth 3380mm

Maximum Digging Force 45KN

Maximum Digging Height 5800mm

Maximum Dumoing Height 4300mm

Back-end radius of gyration 1775mm

Dimensions

(Length*width*height)t ravel position 5500*2100*2850mm

Wheel base 2600mm

Track(Front/rear) 1660mm/1580mm

Ground clearance of counterweight 1060mm

Min ground clearance 200mm

Tech performance and specification

Angle of rotation 360°

Machine weight 6000kg

Engine model YN36GB2/4100

Rated Power 50KW

Rated Speed 2200r/min

Hydraulic system working pressure 19.5Mpa

Hydranlic system flow 110L/min

Metering gear pump 2*25ml/r

Max Hauling force 45KN

Walking speed 35km/h

Grade Climbing ability 58%/30°

Tyre model 750.16

Volume Of Bucket 0.2-0.3m3

Revolution Overdrive Pressure 16Mpa

Full circle swinging time 5.5s

Fqt Fuel Quantity ≥4L/h

Capacity Of The Fuel Tank 130L

Hydraulic Tank Capacity 110L

Company Contact:

• Posted By: JG Excavator

• Phone: 86-(0)21-51860525

• Address: Room23203, No.295 South Lingyan Road, Shanghai city, China, Pudong New District (浦东新区), Shanghai (上海市), China

• Email:

• Website: http://www.jgexcavator.cn

• Business Description: JG Excavator is one of famous brand Chinese engineering machinery and widely used in traffic, municipal engineering, gardens, greening, farms and irrigation works etc.

  Such as grabber loader used for sugarcane and timber lifting flexible and effective with 360°+180° full hydraulic rotate either the wheel or crawler excavator are available.

  Its super performance with high quality and cheap price benefit global users and dealers.

  1 - Mature technical with twenty years professional production on excavator;

  2 - Multifunction devices option, buy one JG excavator could be used lots of engineering.

  3 - Cheap price make you benefit more and lower labor cost, cost return would be 1-2 years;

  4 - High skilled engineer improved the technical advanced with the times, strict quality control and warranty make our machine performance superior.
