Rock Breaker For Excavator - China

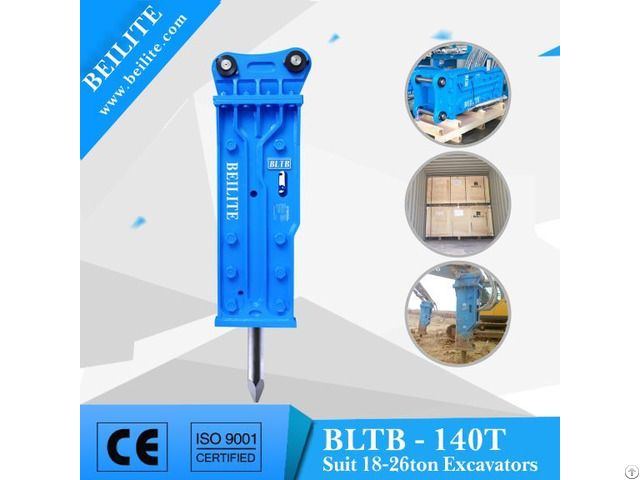

1 - Specification of BLTB140 Silenced type hydraulic hammer breaker for excavator.

(silenced type breaker)

(1) Weight: 2050kg

(2) Length: 2828mm

(3) Required Oil Flow: 120-180 L/min

(4) Working Pressure: 160-180 kg/cm2

(5) Chisel Diameter: 140 mm

(6) Suitable excavator: 18-26 ton

2 - Excavator List for BLTB140 Silenced type hydraulic hammer.

BLT81A hammer suitable for 320, 325, KOMATSU PC200, PC220, HITACHI EX210, EX220, ZX270, ZX300, KOBELCO SK270, SK220, SK230, VOLVO EC210, EC240, SUMTOMO S280, SH200, SH210, HD240, JONYANG JY320, DOOSAN DAEWOO DH220, DH225, HYUNDAL R200, R210, R220, R215, R225, R245

3 - Advantage for BLTB140 Silenced Type hammer breaker for excavator

(1) Easy control, friendly used and easy position make it more convenient to excavator work.

(2) Box type outside bracket can protect the cylinder from the dust during working

(3) It is friendly enviromental, the voice for it during working is quite low.

This type usedly most in European countres.

4 - Payment terms for BLTB140 Silenced type hydraulic breaker for excavator.

(1) T/T payment at sight-30% of payment in advance, and 70% of payment before shipment.

(2) With large quantity of goods in stock, we can send goods to customers fastly and delivery time is quite short.

5 - Warranty period for BLTB140 Silenced type hydraulic breaker:

(1) 12 months or (1500 hrs): Cylinder, Piston, Valve, Back head *

(2) 06 month or (1000 hrs): Front head *

(3) 03 month or (500 hrs): Front bush, Brackets *

(4) 01 month or (100 hrs): Chisel Pin, Accumulator *

Note: All the warranty covered from Invoice Date/ Hrs which ever is earlier and must for proper maintenance only*

6 - Attention in using BLTB140 Silenced Type hydraulic hammer for excavator.

(1) Do lift things with the breaker.

Lifting materials by hanging wire in the bracket or the chisel not only causes damage to the breaker but also is very dangerous when operating.

(2) On a hard or large rock, start breaking at an edge.

Even a hard and big rock can be relatively easily broken when hammering begins at a crack or an edge.

(3) Do not allow the breaker to fall to break a rock.

Dropping the breaker onto a rock will apply excessive force to the breaker or the base machine, causing damage to many parts of the breaker and the base machine.

Sincerely welcome friends, partners to join us to create a prosperous future to create a prosperous future !!
