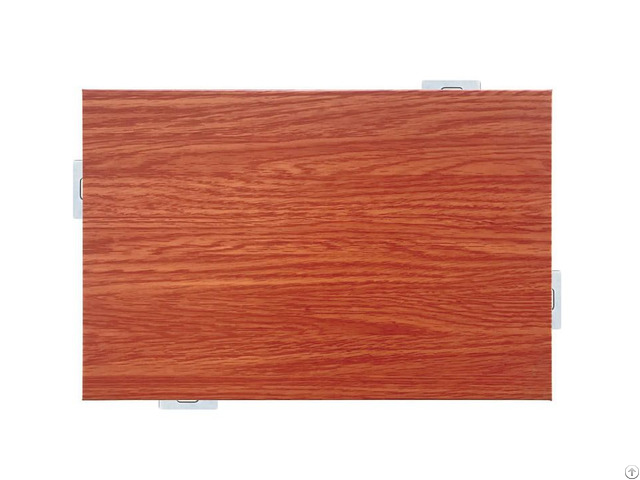

Wood Color Solid Aluminum Panel - China

SAP in Wood Color

Wood Color Solid Aluminum Panel, PVDF Coated Aluminum Solid Panel, Powder coated Aluminum Solid Panel

Aluminum solid panel with stone veneer is a kind of high-grade architectural ornament material for buildings like business center, subway station, airport, train station and so on.

In the world, more and more people use aluminum solid panel for their project, because of aluminum solid panel with stone or wood veneer can keep more than 15 years, and aluminum solid panel can be processed into many different shapes by their design.

Aluminum solid panel with stone or wood veneer have many kinds of design with painting, you can choose from them, or if your project is big enough we can design new painting for you follow your idea.

Technical Specification:

Coating: PVDF or Powder coated, Color: Follow your requirements, Thickness: 2.0~4.0mm, or according to your requirements, Size: Follow your design (less than 1800*6000mm).

No.

item Performance

1 Appearance quality No flow lines, no streaks, no blisters, no foreign substance, no other surface imperfections

2 Film thickness Average: 48umMin.

41um

3 Dry-fil hardness ≥3H

4 Gloss value Gloss value: 34.2~39.1; Average: 37.2

5 Impact resistance 50kg·m, no removal of film from substrate

6 Abrasion resistance 5.3L/um

7 Film adhesion Drying adhesion Grade 0 Wet adhesion Grade 0 Boiling water adhesion Grade 0

8 Chemical resistance Hydrochloric acid resistance No change Nitric acid resistance No changes such as blistering etc.

Δ E=0.75 Mortar resistance No change Solvent resistance No base exposed

9 Salt spray resistance (4000h) Grade 1

10 Humidity resistance Grade 1

11 Artificial weathering (4000) Color retention 1.31 Gloss retention 85% Others Grade 0

Our aim is to meet the needs of our customers by providing extraordinary services from planning to execution and to after-sales service.

We believe in building a long term and strong relationship with all our customers by creating value and satisfaction.

We are currently servicing customers from across the globe in the building, refurbishment, interior design, corporate imaging, signage and transportation industries.

Company Contact:

• Posted By: Dong E Blue Sky and Seven Color Building Materials Co., Ltd.

• Phone: 0635-3584833

• Address: DAQIAO TOWN， DONG E COUNTY， LIAOCHENG CITY， SHANDONG PROVINCE， CHINA , LIAOCHENG , SHANDONG , China

• Email:

• Business Description: SEVEN GROUP- the expert of aluminum building materials manufacturer, has 3 subsidiary: Dong E Blue Sky and Seven Color Building Materials Co., Ltd, Sichuan SEVEN new Building Materials Co., Ltd, Dong E Blue Sky and Seven Metal Materials Co., Ltd, annual sales up to USD1.8 billion.

  We have obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and CE certification.

  In 2007, SEVEN series products were awarded the “CHINA TOP BRAND” “China famous trade mark” and “Green building materials” award.

  SEVENs mission is to build a strong brand that is recognized globally for our superior quality and pre and after sales services.

  Our products such as aluminum composite panel, coated aluminum coil and aluminum solid panel have been tested to various standards such as ASTM and BS by various testing agencies including INTERTEK and TUV SUD PSB Singapore.

  Our products are currently sold to 34 countries worldwide.

  In order to serve our customer better, we have set up a branch office in Malaysia.

  We also have agents and distributors in Indonesia, Thailand, Australia, Russia, UAE, Egypt, India, Spain, Germany and so on.

  STAR VALUES S- SATISFACTION T- TRUSTED (since 1996) A- APPROVED( ISO 9001, ISO14001, ASTM, and BS476 pt 6 pt 7 standard) R- RELIABILITY( full test process from raw materials to finish product)
