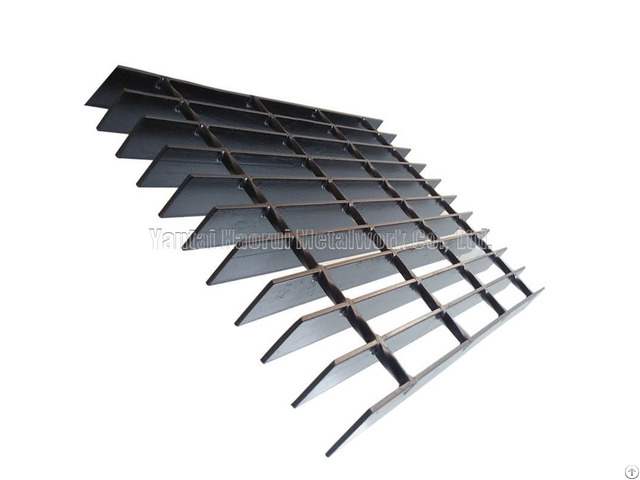

Painted Steel Grating - China

T3 Steel Grating Stair Treads

T2 Steel Grating Stair Treads

SPECIFICATIONS Table 1: Specifications of Welded Steel Grating

Item Specifications of Bearing Bar

(mm) Diameter of Cross Bar

(mm) Pitch of Bearing Bar

(mm) Pitch of Cross Bar

(mm)

WG-203/30/100 20 × 3 6 30 100

WG-205/30/100 20 × 5 6 30 100

WG-303/30/100 30 × 3 6 30 100

WG-304/30/100 30 × 4 6 30 100

WG-305/30/100 30 × 5 6 30 100

WG-323/30/100 32 × 3 6 30 100

WG-325/30/100 32 × 5 6 40 100

WG-353/30/100 35 × 3 6 40 100

WG-355/30/100 35 × 5 6 40 100

WG-403/30/100 40 × 3 6 40 50

WG-404/30/100 40 × 4 6 40 50

WG-405/30/100 40 × 5 6 40 50

WG-455/30/100 45 × 5 10 60 50

WG-505/30/100 50 × 5 10 60 50

WG-555/30/100 55 × 5 10 60 50

WG-605/30/100 60 × 5 10 60 50

WG-655/30/100 65 × 5 10 60 50

WG-705/30/100 70 × 5 10 60 50

Grade CN: Q235, Q345, USA: A36, UK: 43A

Certification CE, GOST, ISO9001, ISO14001, HSE

Bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I

Bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X475X8, 100X8mm, etc

Bearing bar pitch 20, 25, 30, 32.5, 34.3, 40, 50, 60, 62, 65mm

Cross bar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) and etc

Cross bar pitch 0, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.

Panel size 1mx1m3x20ft, 3x24ft, 3x30ft, 5800x1000, 6096x1000, 6400x1000, as request

Surface Untreated, hot dip galvanized, cold dip galvanized, painted, powder, electrostatic coating

Color Silver/Black, painted color as required

Application petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, electric power plants, oil

Hot dip galvanized, Untreated, Painting, Electrostatic spraying

Packing:

Strap packaging: generally used in neat steel grating.

Screw rod fixation: Using four screws through the steel grating aperture, locking screw packaging method.

Pallet packaging: generally for export packing.

Applications of welded steel grating:

1 - Platform services in industrial and energy construction.

2 - Walkway of bridges and transitions.

3 - Shelf of factory and supermarket.

4 - Ceiling of factory, house and hall.

5 - Gully and well cover of street and huge yard.

6 - Fence of balcony, factory and playground.
