Laminated Tempered Igu Dgu Safety Mirror Glass Back Painted Polished - China

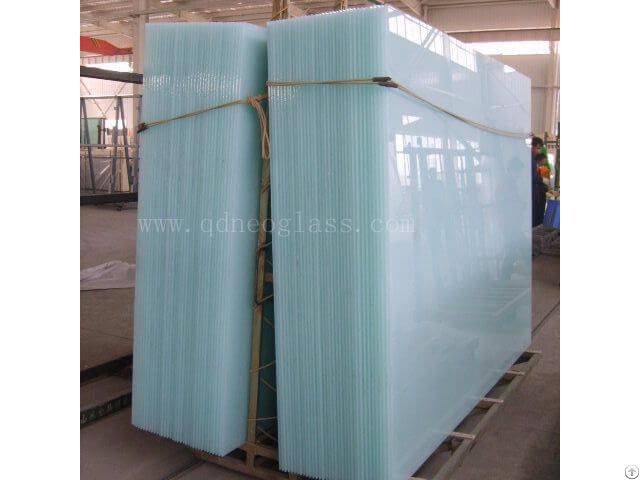

Laminated Glass is one of the Safety Glass used in residential or commercial building.

It is made of two sheets of glass or more with PVB.

That make-up let it have the property of stealing-resistant and glass anti-splash.

That is why it is called safety glass.

Besides, our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.

The two sheets of glass can be annealed, tempered, heat strengthened and ceramic frit.

They can also be float glass, patterned glass, low e, silvermirror and painted glass.

Due to the color of Float Glass or Glass Interlayer, Laminated Glass is available with various of colors besides of Clear Laminated Glass, such as White Translucent, Grey, Bronze, Blue, Green etc.

Laminated Glass is processed mainly in three period.

First of all, Pre-Laminating two sheets or more sheets of glass with PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.

If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating.

The Tempered Glass conbining to Laminated Glass can be processed with Polished Edges, Holes, Cut-Outs or in Irregular Shape.

Laminated glass can be used as Curtain Wall, Door & Window, Roof, Balcony, Balustrade, Partition, Step, Table, Cabinet, Wardrobe, Sliding Door, wherever you would like to use.

With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America Size: Max.

2760 x3660 mm

Thickness: Min 4.38mm

Certificates: AS/NZS 2208: 1996, CE, ISO 9002

Raw Glass: Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass Glass Process: Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or Ceramic Frit, Heat Strengthened Glass, Silver Mirror, Back Painted Glass

Glass Color: Clear, Low Iron, Grey, F-Green, Blue Etc

Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP or other brand appointed by customers Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.

Interleave thickness: PVB-0.38mm, 0.76mm, 1.14mm, 1.52mm SGP-0.89mm, 1.52mm, 2.28mm

Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame, Carton Package, Pallet Etc.
