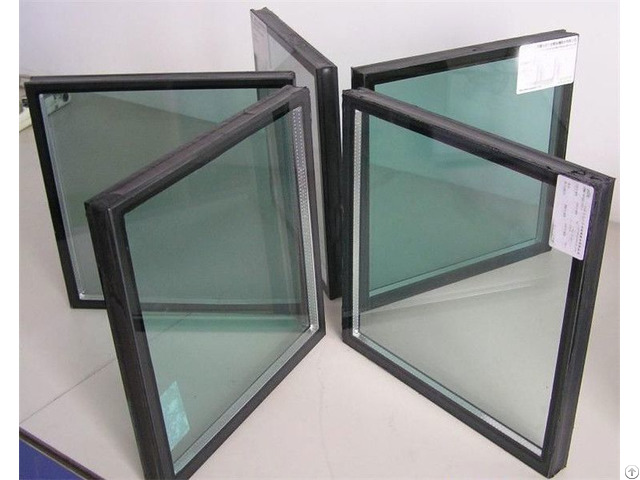

Laminated Insulating Glass, Bulkhead Embedded - China

Insulating glass is a kind of glass product with a drying air space.

It is composed of two or more pieces of glass as effective support and partition and uses a seal around the edges.

The glass is partitioned with hollow aluminum alloy bulkhead filled with desiccant or compound seal string, and the cavity layer is filled with dry air or inert gas.

The bulkhead and glass are sealed with butyl adhesive before the treatment with polysulfide sealant or structural sealant.

Insulating glass can be categorized into two-layer and multilayer insulating glass according to the number of cavities.

The former is composed of two pieces of plate glass and one cavity, and the latter is composed of more than two pieces of glass and two or more cavities.

The more the number of cavities, the better the thermal and acoustic insulation will be.

The two-layer and three-layer insulating glass with two cavities are most widely used.

The bulkhead embedded insulating glass and blind insulating glass developed by our Company are composed of pieces of glass with various artistic patterns and embedded with bulkheads or blind of various materials.

It can provide good features of energy conservation, decoration and privacy protection.

It can be widely used in glass curtain walls, doors and windows of industrial and civil construction, the glass parts of automobiles, trains, ships, aircrafts and instruments, and the places that require thermal insulation and temperature control and dew control, such as observation door of freezers and cold storages, to prevent frost and heat transmission.

Product Varieties: We can provide various insulating glass products in different shapes that meet different energy-saving requirement by using any flat glass (including float glass, coated solar control glass, low-e coated glass, colored glass, laminated glass, tempered glass, hot bent glass or self-cleaning glass) according to the requirements of customers, such as safe and decorative bulkhead embedded insulating glass, blind insulating glass, tempered insulating glass, low-e insulating glass, laminated insulating glass, hot bent insulating glass, automobile insulating glass, instrument peephole insulating glass and home appliance insulating glass.

Features: It can meet the requirements on lighting, scenic, decorative and environmental protection, and solve the issues of the comfortable and beautiful living environment and noise control.

It has good thermal insulation: it can effectively prevent outdoor heat into the room in summer and prevent interior heat loss in winter, reducing air conditioner fees and saving energy, as shown in Table 2-2 - Excellent temperature tolerance, heat resistance, moisture resistance, cold resistance, frost resistance and dew resistance.

The insulating glass made of self-cleaning glass has a number of special features: water affinity, mildew proof, deodorizing, degrading organic pollutants, decomposing harmful gases and purifying the air.

Production Capacity: Max.

Size: 3700mm×2440mm Min.

Size: 245mm×180mm Spacer Width: 6mm, 8mm, 9 mm, 12 mm, 15mm and 20mm Thickness: From 4＋6A＋4 mm To 19＋20A＋19 mm Productivity: 750, 000 ㎡/ year The specification on orders is negotiable Technical and Quality Standards: Complying with Chinese GB/T 11944-2002; American ASTM E 2190; European EN1279-4; Australian standard AS/NZS 4666: 2000

Company Contact:

• Posted By: Qingdao Pioneer Glass

• Phone: 0532-86880938

• Address: East Kunlunshan Road, Taihangshan Road, Qingdao , State , China

• Email:

• Website: http://www.qdpioneerglass.com

• Business Description: Qingdao Pioneer Glass Co., Ltd is located in the beautiful Huangdao District, Qingdao.

  It is adjacent to the Qingdao Port and the Merchants International Terminal to the south and to the Tongsan and Jiaozhou Bay Expressway to the west and contiguous with Qingdao float glass base of Saint-Gobain Glass (France), Qingdao float glass base of Taiwan Glass and Qingdao patterned glass base of Jinjing Glass.

  It is convenient in traffic and predominant in geographical position.

  As an integrated intensive glass processing enterprise, it is specialized in the production and processing of laminated glass, tempered glass, Insulating glass, glass mirror, decorative safety glass and special glass.

  Our Products:

  - tempered, common laminated glass

  - decorative safety glass

  - mirror glass

  - flat tempered glass

  - bulkhead embedded insulating glass
