Interlocking Plank Safety Grating Provides Multiple Choices

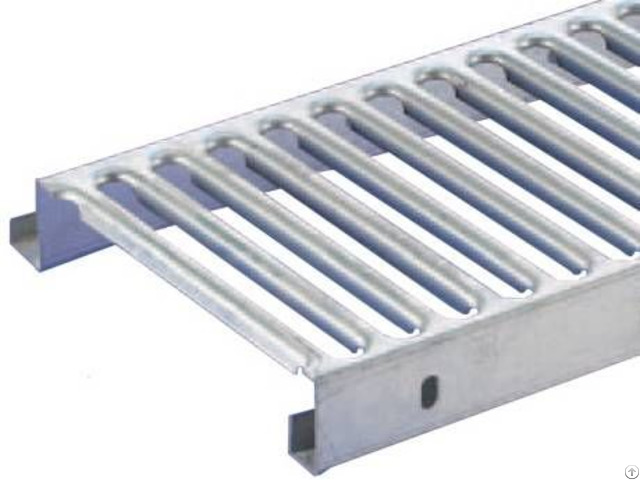

Interlocking plank grating with smooth surface for walkway, stair treads or flooring.

IPG-01: Interlocking Plank Grating.

Interlocking plank safety grating is characterized by its interlocking structure and surface with long slots.

Interlocking design makes for fast installation and saves cost and time.

The distinctive benefit lies in it could provide load for extra-wide applications.

Interlocking plank grating has two types of surface: textured (with sole-gripping dimples) and non-textured (plain surface).

Textured surface is for safer walking while non-textured for wheel traffic or rack decking.

Interlocking grating is fabricated with three types of flanges: FF, FM and MM.

You could arrange the number of planks with different flanges.

Also available in an array of widths, heights and lengths up to 24'.

Product description: Item: Interlocking Plank Grating.

Width: 3", 4", 6", 9" & 12".

Channel depth: 1-1/2", 2-1/2", 3" and 4".

Length: 12', 20', 24' or cut to size.

Material: Mill-galvanized Steel.

Gauge: 14, 16 and 18.

Flange: Female-Female, Female-Male, Male-Male.

Surface condition: MG (Traction Grip) or MS (Smooth).

Accessories: hold-down clamp, hold-down clip, J-bolts are sold separately.

Features & benefits: Available in traction grip and plain surfaces.

Interlocking design for easy installation and cost-saving.

Full line of accessories provided separately.

A variety of widths, heights and lengths for special applications.

Interlock safety grating flooring for a platform.

IPG-02: Interlock grating floor.

Interlocking walkway grating with perforated dimples for steel works.

IPG-03: Industrial Interlocking walkway grating.
