Interlock Grating Accessories - China

Interlock Grating Accessories for Bolted Installation

Accessories for Interlock safety grating Include hold-down clamp, hold-down clip and J-bolts.

These accessories can satisfy with most applications.

Besides accessories installation, welding is another common method of fastening safety grating to cross-members.

Hence, accessories are sold separately.

Hold-down Clamp Hold-down clamp is used to secure interlock safety plank grating to I-beam or other anchoring cross-member.

Field drill is required.

Table-1: Hold-down Clamp Kit

Items Number

Hex head cap screw: 5/16" - 18 1

Flat washer: 5/16" 1

Hex nut: 5/16" - 18 1

Material: Mill galvanized plain steel or stainless steel Type 304.

Interlocking safety grating hold-down clamp to fasten to I-beam.

IGA-01: Hold-down clamps.

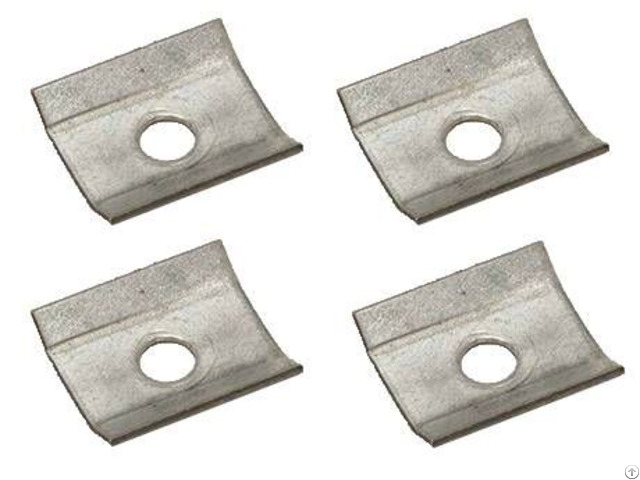

Interlock safety grating hold-down clip.

IGA-02: Hold-down clip.

Hold down clip Hold-down clip is also designed for fastening interlocking safety plank grating to I-beam or other anchoring cross-member.

Field drill is required.

Interlock plank grating J-bolt.

Anchor J-bolts.

Anchor J-bolt J-bolt is used to secure the FM interlocking safety planks to I-beam or other anchoring cross-members.

Field drilling is required.

Table-2: Anchor J-bolt

Items Number

J-bolt: 5/16"-18 × 2-13/16".

1

Flat washer: 5/16".

2

Hex nuts: 5/16" - 18 2

Material: mill galvanized plain steel or stainless steel Type 304.
