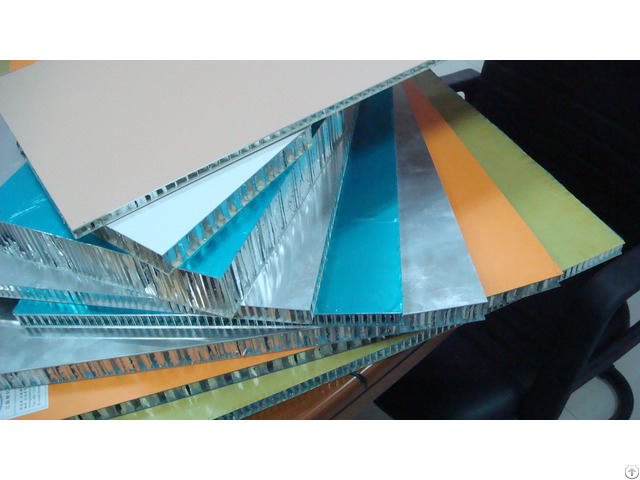

Honeycomb Sandwich Panel - Taiwan

Honeycomb cores range from paper and card for low strength and stiffness, low load applications (such as domestic internal doors) to high strength and stiffness, extremely lightweight components for aircraft structures.

Honeycombs can be processed into both flat and curved composite structures, and can be made to conform to compound curves without excessive mechanical force or heating.

Honeycomb cores can give stiff and very light laminates but due to their very small bonding area they are almost exclusively used with high-performance resin systems such as epoxies so that the necessary adhesion to the laminate skins can be achieved.

Company Contact:

• Posted By: TCcore Applied Honeycomb Technology Co., Ltd.

• Phone: 886-6-3843779

• Address: No.31,Gongye 1st Rd., Tainan City, Annan Dist., Taiwan

• Email:

• Website: https://www.rbtch-honeycomb.com

• Business Description: Aluminum honeycomb panel is the material that has been applied in aerospace industry originally, now, it is widely utilized in architectures, vehicles and ship decoration.

  The advantages of RBTCH honeycomb panels are shown as below：

  LIGHT WEIGHT, HIGH STRENGTH AND RIGIDITY, STABLE STRUCTURE, AND GOOD PERFORMANCE OF WIND PRESSURE RESISTANCE

  Aluminum honeycomb panels are the sandwich panels with quite high rigidity; in addition, at the same thickness, the weight is merely 1/5 of aluminum panel, 1/6 of glass, and 1/10 of steel plate.

  The connecting aluminum honeycomb inside the panels are just like numerous I-beams which are uniformly distributed and affixed between the upper and lower plates that make the panels uneasily deformed and more stable.

  Furthermore, at the performance of wind pressure resistance, aluminum honeycomb panel is also far better than aluminum plastic composite panel and aluminum single panel.

  FLAME RESISTANCE, SOUND AND HEAT INSULATION EFFECT

  After compounded with surface panel, the hexagons of aluminum honeycomb become closed chambers which stop the air flowing; therefore, the sound and the heat can be insulated well.

  COLORS OF DIVERSITY

  The surface panels can be painted by PE and PVDF coating; also, anodizing is available for aluminum surface sheet.

  DECORATIVE EFFECT, EASY INSTALLATION AND SHORTER CONSTRUCTION

  The facing panels can be selected by requisition from aluminum, copper, iron, stainless steel, color steel, glass steel, marble stone or deluxe wooden texture and plywood boards and the size can customize by ordering that help saving installation time in construction site.

  Furthermore, the panels can do any special machining.
