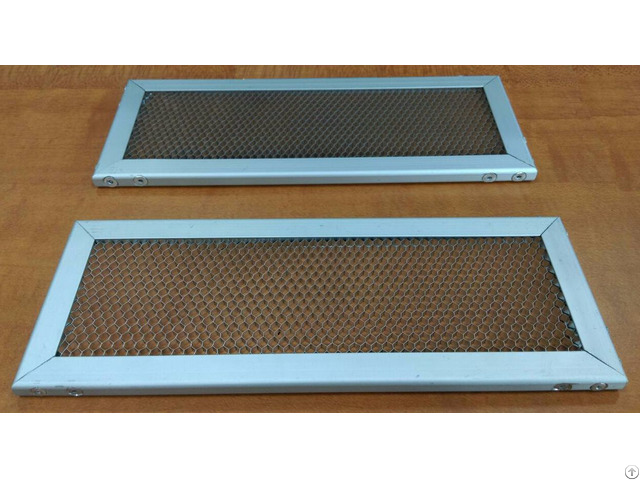

Honeycomb Core With Edge Aluminum - Taiwan

Aluminum honeycomb (cores and panels) are a material made from very thin affixed foil with continuous structure; therefore, there are neither screws nor welding structures which would generate concentrated stress, so the superior fatigue resistance can be kept excellent.

Consequently, the material is no sized limitation and can be widely applied.

RBTCH aluminum honeycomb core is a material that consists of hexagonal structure.

With continuous R&D innovation, RBTCH aluminum honeycomb core can be compounded with different upper and lower material which is also called sandwich panel and become very light laminate board with extremely high strength composited panels.

The facing panels can be selected by requisition from aluminum, copper, iron, stainless steel, color steel, glass steel, marble stone or deluxe wooden texture and plywood boards.

In addition, the aluminum honeycomb core can do the chromic acid treatment or electrodeposition coating requested by customer.

Honeycomb structures include sandwich-structured composites with honeycomb cores.

Man-made honeycomb structures are manufactured by using a variety of different materials, depending on the intended application and required characteristics, from paper or thermoplastics, used for low strength and stiffness for low load applications, to high strength and stiffness for high performance applications, from aluminum or fiber reinforced plastics.

The strength of laminated or sandwich panels depends on the size of the panel, facing material used and the number or density of the honeycomb cells within it.

Honeycomb composites are used widely in many industries, from aerospace industries, automotive and furniture to packaging and logistics.

The material takes its name from its visual resemblance to a bee's honeycomb – a hexagonal sheet structure.

Company Contact:

• Posted By: TCcore Applied Honeycomb Technology Co., Ltd.

• Phone: 886-6-3843779

• Address: No.31,Gongye 1st Rd., Tainan City, Annan Dist., Taiwan

• Email:

• Website: https://www.rbtch-honeycomb.com

• Business Description: Aluminum honeycomb panel is the material that has been applied in aerospace industry originally, now, it is widely utilized in architectures, vehicles and ship decoration.

  The advantages of RBTCH honeycomb panels are shown as below：

  LIGHT WEIGHT, HIGH STRENGTH AND RIGIDITY, STABLE STRUCTURE, AND GOOD PERFORMANCE OF WIND PRESSURE RESISTANCE

  Aluminum honeycomb panels are the sandwich panels with quite high rigidity; in addition, at the same thickness, the weight is merely 1/5 of aluminum panel, 1/6 of glass, and 1/10 of steel plate.

  The connecting aluminum honeycomb inside the panels are just like numerous I-beams which are uniformly distributed and affixed between the upper and lower plates that make the panels uneasily deformed and more stable.

  Furthermore, at the performance of wind pressure resistance, aluminum honeycomb panel is also far better than aluminum plastic composite panel and aluminum single panel.

  FLAME RESISTANCE, SOUND AND HEAT INSULATION EFFECT

  After compounded with surface panel, the hexagons of aluminum honeycomb become closed chambers which stop the air flowing; therefore, the sound and the heat can be insulated well.

  COLORS OF DIVERSITY

  The surface panels can be painted by PE and PVDF coating; also, anodizing is available for aluminum surface sheet.

  DECORATIVE EFFECT, EASY INSTALLATION AND SHORTER CONSTRUCTION

  The facing panels can be selected by requisition from aluminum, copper, iron, stainless steel, color steel, glass steel, marble stone or deluxe wooden texture and plywood boards and the size can customize by ordering that help saving installation time in construction site.

  Furthermore, the panels can do any special machining.
