High Tensile Strength Steel Wire Factory - China

Hot Dipped Galvanized Steel Wire

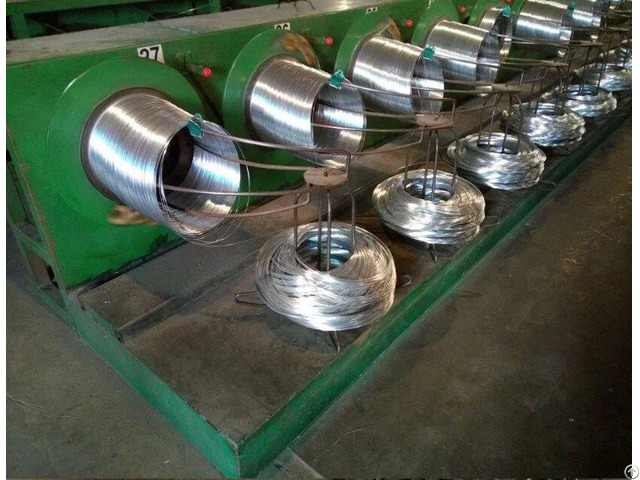

Hot dipped galvanized steel wire is made with choice low carbon steel wire, high tensile strength steel wire, through wire drawing, wire annealing, rust removing, acid washing, boiling, drying, zinc feeding, drying, and wire coiling.

Hot dipped galvanized steel wire belongs to high-grade galvanzed wire products series, it has much more zinc coating thickness, longer service life and wide-range in application, of course, the hot dipped galvanized steel wire cost is also higher than electro galvanized wire, It's mainly used in construction, handicrafts, woven wire mesh, welded wire mesh, packaging of products and other daily uses.

We are high tensile strength steel wire factory.

SPECIFICATION

Hot dipped galvanized low carbon steel wire offers excellent flexibility and softness, the material is low carbon steel wire, tensile strength 350-550N/mm2, the zinc coating can be economical 40g-60g/m2, or heavy zinc coating 200g-260g/m2, heavy zinc coating low carbon steel wire is the main wire material source of gabion mesh weaving, we put 5%-10% aluminum into zinc feeding pool, produce galfan ZN-5% AL coated wire and galfan ZN-10% AL coated wire, the hot dipped galvanized galfan coated wire has higher corrosion resistance, it is about 2-3 times that of ordinary pure galvanized steel wire, mainly used in outdoors, humid environment, or in harsh environment such as marine climate.

galfan hot dipped galvanized steel wire has the characteristics of strong adhesion, abrasion resistance, good corrosion resistance and superior construction performance, all these features make it become the best choice for gabion mesh weaveing material.

Hot Dipped Galvanizing Wire is mainly processed into coil wire, spool wire, strand wire, big package wire, or further straightened and cut into pre-cutting wire and U type wire.

Hot dipped galvanized high tensile steel wire, material is high tensile strength steel wire, tensile strength 1100-1650N/mm2, the zinc coating can be economical 60g-80g/m2, or heavily zinc coating 200g-260g/m2, used in electric fencing, support wires in orchard and viticulture irrigation systems, Residential fencing, high tensile barbed wire weaving materials.

Single coil package for Hot Dipped Galvanized Steel Wire can be different from 10 kg to 500 kg.

Wire diamter range: BWG 8-BWG 22

Packing: 10-500kgs/coil, coil with plastic film inside and hessian cloth outside or PVC woven cloth outside.

Quantity in one 20ft container: 25 tons generally.

Min order quantity: 2000kgs.

GAUGE SWG

(MM ) BWG

(MM ) INCH GAUGE SWG

(MM) BWG

(MM) INCH GAUGE SWG

(MM ) BWG

(MM ) INCH

0 8.230 8.636 0.340 17 1.422 1.473 0.058 34 0.234 0.178 0.007

1 7.620 7.620 0.300 18 1.219 1.245 0.049 35 0.213 0.127 0.005

2 7.010 7.214 0.284 19 1.016 1.067 0.042 36 0.193 0.102 0.004

3 6.401 6.579 0.259 20 0.914 0.889 0.035 37 0.173 * 0.0068

4 5.893 6.045 0.238 21 0.813 0.813 0.032 38 0.152 * 0.0060

5 5.385 5.588 0.220 22 0.711 0.711 0.028 39 0.132 * 0.0052

6 4.877 5.156 0.203 23 0.610 0.635 0.025 40 0.122 * 0.0048

7 4.470 4.572 0.180 24 0.559 0.559 0.022 41 0.112 * 0.0044

8 4.064 4.191 0.165 25 0.508 0.508 0.020 42 0.102 * 0.0040

9 3.658 3.759 0.148 26 0.457 0.457 0.018 43 0.091 * 0.0036

10 3.251 3.404 0.134 27 0.417 0.406 0.016 44 0.081 * 0.0032

11 2.946 3.048 0.120 28 0.376 0.356 0.014 45 0.071 * 0.0028

12 2.642 2.769 0.109 29 0.345 0.330 0.013 46 0.061 * 0.0024

13 2.337 2.413 0.095 30 0.315 0.305 0.012 47 0.051 * 0.0020

14 2.032 2.108 0.083 31 0.295 0.254 0.010 48 0.041 * 0.0016

15 1.829 1.829 0.072 32 0.274 0.229 0.009 49 0.031 * 0.0012

16 1.626 1.651 0.065 33 0.254 0.203 0.008 50 0.025 * 0.0010
