Glass Sandwich Honeycomb Core - Taiwan

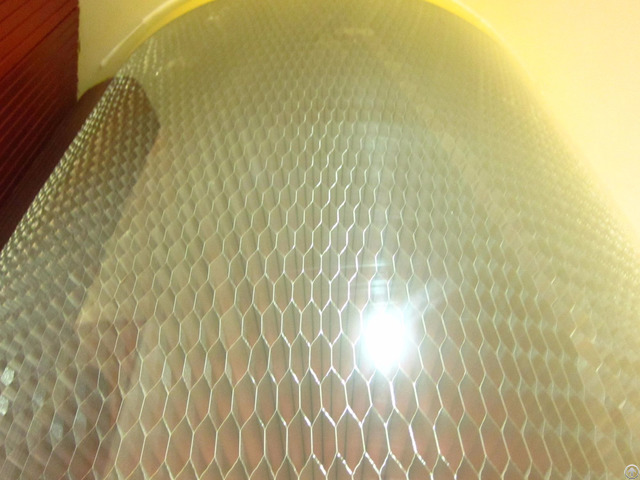

The glass sandwich the aluminum hoeycomb core was applied in many interior design or building.

Honeycomb structures are natural or man-made structures that have the geometry of a honeycomb to allow the minimization of the amount of used material to reach minimal weight and minimal material cost.

The geometry of honeycomb structures can vary widely but the common feature of all such structures is an array of hollow cells formed between thin vertical walls.

The cells are often columnar and hexagonal in shape.

A honeycomb shaped structure provides a material with minimal density and relative high out-of-plane compression properties and out-of-plane shear properties.

Aluminum honeycomb has the advantages of the environmental protection, green energy material, low weights and easy installation.

In addition, RBTCH honeycomb panels passes the fireproof test of SGS based on CNS 14705; therefore, it becomes the popular building material of construction Industry.

Company Contact:

• Posted By: TCcore Applied Honeycomb Technology Co., Ltd.

• Phone: 886-6-3843779

• Address: No.31,Gongye 1st Rd., Tainan City, Annan Dist., Taiwan

• Email:

• Website: https://www.rbtch-honeycomb.com

• Business Description: Aluminum honeycomb panel is the material that has been applied in aerospace industry originally, now, it is widely utilized in architectures, vehicles and ship decoration.

  The advantages of RBTCH honeycomb panels are shown as below：

  LIGHT WEIGHT, HIGH STRENGTH AND RIGIDITY, STABLE STRUCTURE, AND GOOD PERFORMANCE OF WIND PRESSURE RESISTANCE

  Aluminum honeycomb panels are the sandwich panels with quite high rigidity; in addition, at the same thickness, the weight is merely 1/5 of aluminum panel, 1/6 of glass, and 1/10 of steel plate.

  The connecting aluminum honeycomb inside the panels are just like numerous I-beams which are uniformly distributed and affixed between the upper and lower plates that make the panels uneasily deformed and more stable.

  Furthermore, at the performance of wind pressure resistance, aluminum honeycomb panel is also far better than aluminum plastic composite panel and aluminum single panel.

  FLAME RESISTANCE, SOUND AND HEAT INSULATION EFFECT

  After compounded with surface panel, the hexagons of aluminum honeycomb become closed chambers which stop the air flowing; therefore, the sound and the heat can be insulated well.

  COLORS OF DIVERSITY

  The surface panels can be painted by PE and PVDF coating; also, anodizing is available for aluminum surface sheet.

  DECORATIVE EFFECT, EASY INSTALLATION AND SHORTER CONSTRUCTION

  The facing panels can be selected by requisition from aluminum, copper, iron, stainless steel, color steel, glass steel, marble stone or deluxe wooden texture and plywood boards and the size can customize by ordering that help saving installation time in construction site.

  Furthermore, the panels can do any special machining.
