Frp Water Tank - China

Combined FRP water tank is a substitute for old cement water tank.

FRP water tank fully meets the technical performance requirements of the National Construction Industry Bureau Standard JC658.1-1997 - FRP fire water tank SMC molded veneer is made of SMC sheet produced by food-grade resin, which is pressed by high temperature, high pressure and machinery.

In the manufacturing process, the machine pressing method is adopted.

It increases the seismic and impact resistance, overcomes the defect of uneven strength of hand-made products, and improves the compressive strength and service life; in the appearance design, the middle of the plate is concave, which improves the pressure bearing capacity of the water tank.

At the same time, there are no 45-degree and 90-degree flanges around the plate.

No corner connectors are required during assembly, which is more flexible and flexible.

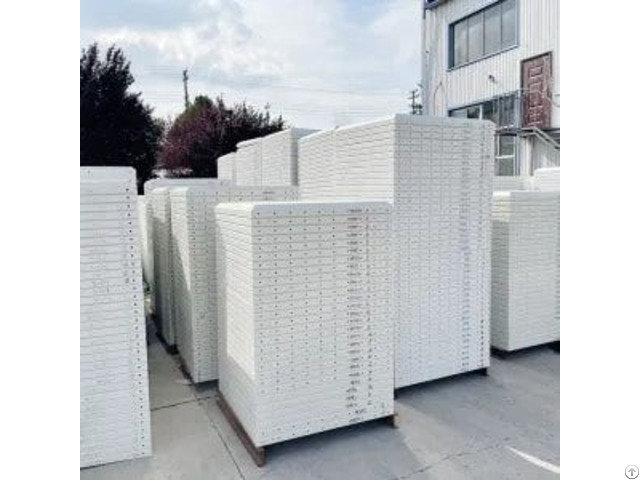

The specifications of the water tank plate are: 1000x1000mm; 1000x500mm; 500x500mm.

The thickness is 5mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm.

Among them, the 5mm thick plate is specially used as the water tank cover.

Therefore, it can be assembled into a water tank of the required capacity at will.

Classification:

According to the purpose, FRP water tanks can also be divided into: SMC FRP water tanks, FRP integral water tanks, FRP assembled water tanks, FRP domestic water tanks, FRP fire water tanks, FRP insulation water tanks, etc.

Advantages of FRP water tanks

1 - Wear-resistant and aging-resistant: It can be used in harsh corrosive environments or other working environments with great wear.

2 - FRP water tanks are resistant to high temperatures and flame retardant: Compared with flammable wood and metals with poor thermal conductivity, this advantage of FRP water tanks is a new breakthrough.

3 - FRP water tanks themselves are insulators, non-conductive and non-thermal, with high safety performance, and their service life is generally more than 50 years.

4 - FRP water tanks are light and strong: the relative density is between 1.5-2.0, which is only 1/41/5 of carbon steel, but the tensile strength is close to or even exceeds that of carbon steel, and the specific strength can be compared with alloy steel.

5 - Regarding the use of FRP water tanks, they have good resistance to the atmosphere, water, and acids, alkalis, salts of normal concentrations, as well as various oils and solvents.

Installation method

1 During installation, leave an inspection channel of not less than 800mm between the box and the wall, and the top and bottom of the box should not be less than 500mm;

2 During civil construction, make a concrete foundation first

3 - After assembly, the outlet pipe and drain pipe should be closed, and the inlet pipe should be opened.

After filling with water, there should be no leakage for 24 hours to be qualified;

4 - Provide construction power supply and check sealing water at the construction site.

Application scope

Living and fire-fighting water for ordinary residences, commercial and residential buildings, office buildings, residential areas, government agencies, schools, hotels, etc.

;

2 - Production and living water for industrial and mining enterprises;

3 - Water for various types of circulating water, cooling water, and hot water supply systems:

4 - Acid and alkali reserves.

Over the years, Runlin company's products with novel structure, beautiful appearance, energy saving, high efficiency, environmental protection, easy maintenance won the praise of the majority of users, in the national FRP series product market opened up their own a new world.

Company Contact:

• Posted By: Hebei Runlin Environmental protection Technology Co., LTD

• Phone: 13373517291

• Address: Xingyuan South Street, Zaoqiang County, Hengshui , Hebei , China

• Email:

• Website: https://www.hbrunlinhb.com/

• Business Description: Hebei Runlin Environmental Protection Technology Co., Ltd is located in Zaoqiang County, Hebei Province FRP production base -- the company was founded in 2009 (formerly known as Zaoqiang Xingda FRP Products Factory), the company was expanded in 2015 to establish a joint-stock company, The company is located in Zaoqiang County small and medium-sized science and technology Industrial Park, the registered capital of 10 million yuan, the production workshop area of 13,000 square meters, is a high-tech enterprise, specialized special small and medium-sized enterprises, high-tech smes, innovative smes, with a number of product patents.

  Annual production capacity of more than 18 million yuan.

  Is a professional company specializing in the production, installation and sales of FRP products, and scientific research, design, production, testing, sales, installation and after-sales service in one of the science and technology enterprises.

  FRP winding series: FRP sand pipe, FRP air pipe, FRP jacking pipe, BWFRP braided winding cable pipe, FRP storage tank, septic tank and other winding products

  Environmental protection equipment series: Fiberglass desulfurization tower, absorption tower, purification tower, ammonia nitrogen blowing tower, fiberglass biological deodorization box and other waste gas treatment equipment

  Fiberglass pultrusion series: cable bridge, square pipe, round pipe, plate, sewage filler and other profiles

  FRP molding series: SMC combination water tank, septic tank, cable bracket and other molding process products

  FRP hand paste series: FRP arch cover plate, standard and shaped pipe fittings, rectangular air pipe, custom non-standard products, anti-corrosion engineering

  FRP shaping equipment: FRP cooling tower, FRP fan, etc
