Finger Joints - China
price: 4.00 Dollar US$

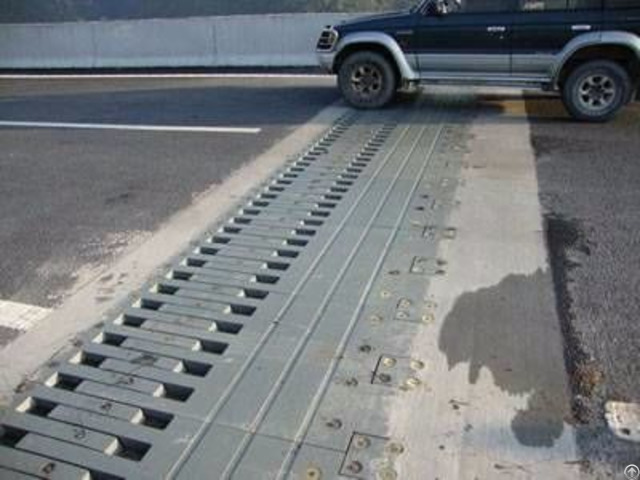

Finger joints are designed to handle movements of 80 mm to 1, 200 mm are composed by steel finger plates, CR sheet, anchor bolts and other components.
The rubber sheet is placed on the retractable steel, and anchor bolts help to fix the whole structure.
The orientation of the fingers is in the direction of vehicle travel, which can reduce noise and improve driver's comfort.
There is a drainage channel which allows rainwater to enter the bridge's drainage system, hanging beneath the joint.
Features
Simple structure & low height.
Minimize noise and vibration.
Maximize vehicle's driving smoothness.
Anti-skidding.
Be highly water-resistant (Equipped with waterproof device).
Low cost & high cost effectiveness.
Widespread use.
Easy to install.
Application
Finger joints are suitable for both new bridges and existing bridges.
They are also good choices for the large-span bridges and do well in replacing the old ones.
Finger joints are widely used among steel box girders, among concrete beams, and between steel box girders and concrete beams.
Company Contact:
- Posted By: Hengshui JingTong Rubber Co., Ltd.
- Phone: +86-318-5227227
- Address: Nanwangzhuang Village, hengshui , hebei , China
- Email:
- Website: https://www.bridgejoints.com
Published date: January 22, 2018
- Business Description: Single Gap Joints，
Rubber Bridge Expansion Joints，
TST Expansion Joint，
Finger Joints，
Multiple-gap Expansion Joints
