Electro Galvanized Iron Wire - China

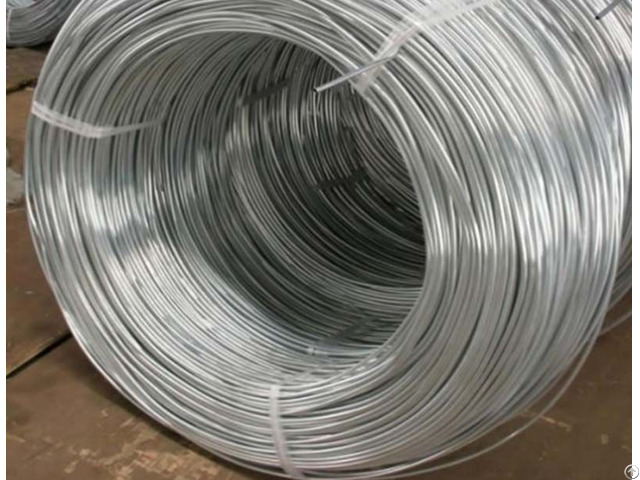

Electro Galvanized Iron Wire

Electro Galvanized Wire is our featured product, factory own 30 sets of large wire drawing machines, 60 sets of medium wire drawing equipments, 3 sets of electro galvanizing production line, daily output 30 tons of electro galvanized iron wire, they have the characteristics of uniform and firm zinc coating, good corrosion resistance, excellent flexibility, etc, mainly used in contruction binding wire, making of common wire nails, barbed wire twisting, strand wire, binding of flowers, handicrafts, woven galvanized square wire mesh and galvanized welded wire mesh.

We are gal wire supplier.

Electro Galvanized Wire produce process:

Steel rod - Wire Drawing - Wire Annealing - Rust Removing - Acid Washing - Boiling-Drying-Zinc Feeding-Wire Coiling

Material: low carbon steel wire

Wire diameter range: BWG8-BWG34

Packing: 1-1000kgs/coil, coil with plastic film inside and hessian cloth outside or weaved cloth outside

Zinc coat: 10-25g/m2

Tensile strength: 350-550N/mm2

Elongation: 10%-20%

Quantity in one 20ft container: 25 tons generally

Min order quantity: 2000kgs

electro galvanized iron wire is mainly processed into coil wire, spool wire, strand wire, big package wire, or further straightened and cut into pre-cutting wire and U type wire.

GAUGE SWG

(MM ) BWG

(MM ) INCH GAUGE SWG

(MM) BWG

(MM) INCH GAUGE SWG

(MM ) BWG

(MM ) INCH

0 8.230 8.636 0.340 17 1.422 1.473 0.058 34 0.234 0.178 0.007

1 7.620 7.620 0.300 18 1.219 1.245 0.049 35 0.213 0.127 0.005

2 7.010 7.214 0.284 19 1.016 1.067 0.042 36 0.193 0.102 0.004

3 6.401 6.579 0.259 20 0.914 0.889 0.035 37 0.173 * 0.0068

4 5.893 6.045 0.238 21 0.813 0.813 0.032 38 0.152 * 0.0060

5 5.385 5.588 0.220 22 0.711 0.711 0.028 39 0.132 * 0.0052

6 4.877 5.156 0.203 23 0.610 0.635 0.025 40 0.122 * 0.0048

7 4.470 4.572 0.180 24 0.559 0.559 0.022 41 0.112 * 0.0044

8 4.064 4.191 0.165 25 0.508 0.508 0.020 42 0.102 * 0.0040

9 3.658 3.759 0.148 26 0.457 0.457 0.018 43 0.091 * 0.0036

10 3.251 3.404 0.134 27 0.417 0.406 0.016 44 0.081 * 0.0032

11 2.946 3.048 0.120 28 0.376 0.356 0.014 45 0.071 * 0.0028

12 2.642 2.769 0.109 29 0.345 0.330 0.013 46 0.061 * 0.0024

13 2.337 2.413 0.095 30 0.315 0.305 0.012 47 0.051 * 0.0020

14 2.032 2.108 0.083 31 0.295 0.254 0.010 48 0.041 * 0.0016

15 1.829 1.829 0.072 32 0.274 0.229 0.009 49 0.031 * 0.0012

16 1.626 1.651 0.065 33 0.254 0.203 0.008 50 0.025 * 0.0010
