Cold Drawn Reinforcement Mesh - China

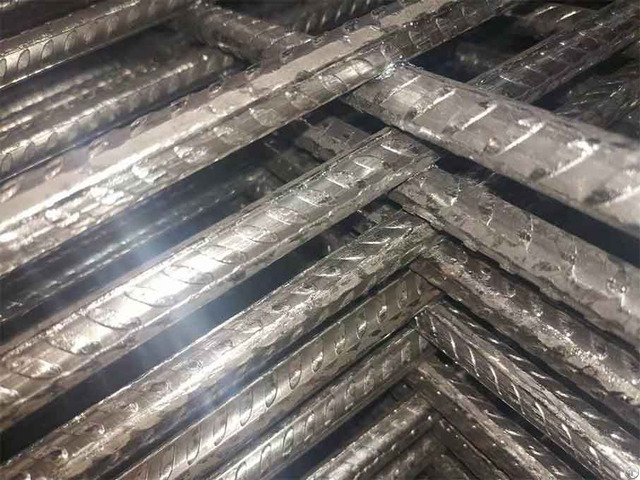

E5 / e6 / e7 / e8 / e9 / e10 / e11 / e12 / e14 / e16 cold drawn reinforcement mesh

chinese standard welded wire mesh

heyou wire mesh factory as expert for producing cold drawn reinforcement mesh.

which has widly application.

the cold drawn reinforcement mesh main used on bridge reinforced and support, highway and road subgrade, subway reinforcement, coal and mining support and reinforcement, tunnel support.

the wire diameter: 4-12mm

the mesh spacing: 150mm*150mm

tensile strength:

360n/sqmm for cold drawn reinforcement mesh with ribbed.

320n/sqmm for cold drawn reinforcement mesh with plain.

the mesh size:

2.2m * 5.8m or 2.2m * 11.8m

the packing: 1tons more or less per bundle

hs code: 73142000

the cold drawn reinforcement plan cold drawn reinforcement mesh welded by logitudinal bars and transverse bas.

b1, b2 named spacing of cold drawn reinforcement mesh;

u1, u2, u3 u4 named overhang of cold drawn reinforcement mesh

l named length

b named width the full of the cold drawn reinforcement mesh's specification:

concrete reinforced welded steel mesh

mesh model longitudinal reinforcement transverse reinforcement weight (kg / m2) wire diameter (mm) distance (mm) area per meter(mm2/ m) wire diameter (mm) distance (mm) area per meter(mm2 / m) e12 12 150 754 12 150 754 11.84

e11 11 150 634 11 150 634 9.95

e10 10 150 523 10 150 523 8.22

e9 9 150 423 9 150 423 6.66

e8 8 150 335 8 150 335 5.26

e7 7 150 257 7 150 257 4.03

e6 6 150 189 6 150 189 2.96

e5 5 150 131 5 150 131 2.03 how can we connected with two pieces of cold drawn reinforcement mesh in construction?

there are three ways to connect with two pieces of cold drawn reinforcement mesh: overlap connection, nesting, and back overlapping.

Company Contact:

• Posted By: Anping Heyou Wire Mesh Products Co.Ltd

• Phone: 86-311-80768128

• Address: Chang'an District, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.reinforcedsteelmesh.com/

• Business Description: Heyou Wire Mesh was established in 2009 year, which is a professional manufactory for reinforcement mesh, reinforcing mesh, reinforced mesh.

  Heyou Wire Mesh can produce National Standard reinforcing mesh, Australian/New Zealand Standard AS-NZS4671-2001 Reinforcement Mesh, British Standard BS4483 fabric reinforcement/reinforced mesh, Osterreichische Norm B4200-7 Grids and reinforcing meshes, Germany Standard DIN488 SD Reinforcing Mesh, Normes Francaises NFA35-016 Steel Rebar Mesh and Swiss Standard SIA 16211 S550 Reinforcement Wire Mesh.

  Our production capacity is 2000tons per month.

  Heyou factory has 8 workshops and covers 20000sqm area, with advanced international standard production line and equipments.
