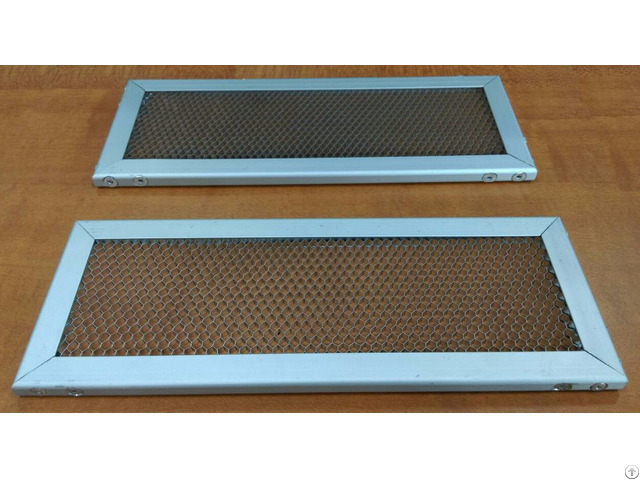

Aluminum Honeycomb Core With Edge - Taiwan

Honeycomb structures are natural or man-made structures that have the geometry of a honeycomb to allow the minimization of the amount of used material to reach minimal weight and minimal material cost.

The geometry of honeycomb structures can vary widely but the common feature of all such structures is an array of hollow cells formed between thin vertical walls.

The cells are often columnar and hexagonal in shape.

A honeycomb shaped structure provides a material with minimal density and relative high out-of-plane compression properties and out-of-plane shear properties.

Honeycomb structural materials are commonly made by layering a honeycomb material between two thin layers that provide strength in tension.

This forms a plate-like assembly.

Honeycomb materials are widely used where flat or slightly curved surfaces are needed and their high Specific strength is valuable.

They are widely used in the aerospace industry for this reason, and honeycomb materials in aluminum, fibreglass and advanced composite materials have been featured in aircraft and rockets since the 1950s.

They can also be found in many other fields, from packaging materials in the form of paper-based honeycomb cardboard, to sporting goods like skis and snowboards.

Aluminum honeycomb (cores and panels) are a material made from very thin affixed foil with continuous structure; therefore, there are neither screws nor welding structures which would generate concentrated stress, so the superior fatigue resistance can be kept excellent.

Consequently, the material is no sized limitation and can be widely applied.

RBTCH aluminum honeycomb core is a material that consists of hexagonal structure.

With continuous R&D innovation, RBTCH aluminum honeycomb core can be compounded with different upper and lower material which is also called sandwich panel and become very light laminate board with extremely high strength composited panels.

The facing panels can be selected by requisition from aluminum, copper, iron, stainless steel, color steel, glass steel, marble stone or deluxe wooden texture and plywood boards.

Company Contact:

• Posted By: TCcore Applied Honeycomb Technology Co., Ltd.

• Phone: 886-6-3843779

• Address: No.31,Gongye 1st Rd., Tainan City, Annan Dist., Taiwan

• Email:

• Website: https://www.rbtch-honeycomb.com

• Business Description: Aluminum honeycomb panel is the material that has been applied in aerospace industry originally, now, it is widely utilized in architectures, vehicles and ship decoration.

  The advantages of RBTCH honeycomb panels are shown as below：

  LIGHT WEIGHT, HIGH STRENGTH AND RIGIDITY, STABLE STRUCTURE, AND GOOD PERFORMANCE OF WIND PRESSURE RESISTANCE

  Aluminum honeycomb panels are the sandwich panels with quite high rigidity; in addition, at the same thickness, the weight is merely 1/5 of aluminum panel, 1/6 of glass, and 1/10 of steel plate.

  The connecting aluminum honeycomb inside the panels are just like numerous I-beams which are uniformly distributed and affixed between the upper and lower plates that make the panels uneasily deformed and more stable.

  Furthermore, at the performance of wind pressure resistance, aluminum honeycomb panel is also far better than aluminum plastic composite panel and aluminum single panel.

  FLAME RESISTANCE, SOUND AND HEAT INSULATION EFFECT

  After compounded with surface panel, the hexagons of aluminum honeycomb become closed chambers which stop the air flowing; therefore, the sound and the heat can be insulated well.

  COLORS OF DIVERSITY

  The surface panels can be painted by PE and PVDF coating; also, anodizing is available for aluminum surface sheet.

  DECORATIVE EFFECT, EASY INSTALLATION AND SHORTER CONSTRUCTION

  The facing panels can be selected by requisition from aluminum, copper, iron, stainless steel, color steel, glass steel, marble stone or deluxe wooden texture and plywood boards and the size can customize by ordering that help saving installation time in construction site.

  Furthermore, the panels can do any special machining.
