Galvanized Steel Guardrails - China
price: contact company for price

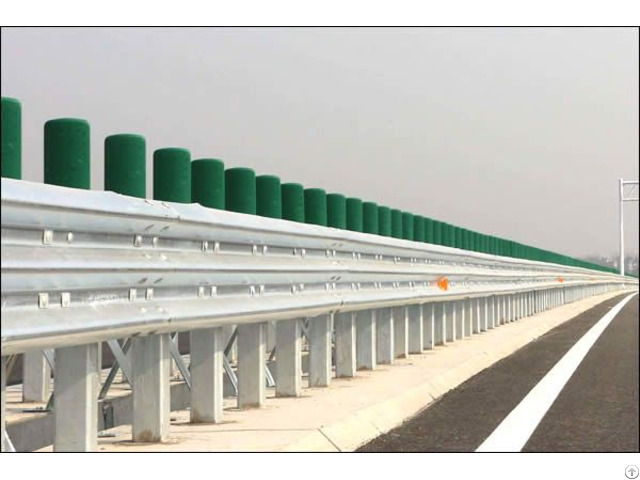

Galvanized Steel Guardrails for Highway Roads Safety Fencing
We supply galvanized guard rails for highways projects in Germany, India, Cyprus and other countries.
Galvanized steel guard rails include following elements, with technical specification and applicable standards: Steel W - beam:
Steel W – beam, 3.81m length between post centres, Norminal thickness 2.7mm, per standard BS 970.080.40 Steel bolt and nut with washer for steel beam: Steel bolt nut with washer (18×30mm ) BS 729
Steel U post:
Steel U - post (120×800mm, length 1.65m, norminal thickness6.35mm)
Steel post bolt with nut and washer:
Steel post bolt with nut and washer (16×125mm) BS 729 Steel U spacer:
Steel U spacer 75×60mm, length 0.31m, nominal thickness 2.5mm Steel plate:
Steel plate (100×45mm, thickness 4mm) Steel fish plate (End bit):
Fish plate (End bit) 470×81mm, Length 0.55m, nominal thickness 2.7mm, per standard BS 970.080.40 Galvanized Steel Guard Rails, supplied with Parts and Accessories for complete systems Steel Highway Guardrails, Hot-Dip Galvanized Finish, AASHTO M180 Steel guard rails
Steel poles 1.5 m
Steel poles 2m
Screw fasteners: Size 16χ30 Specification:
Steel guard rails, flat striking force N2 according to the standard EN 1317-1, EN 1317-2 & EN 1317-5
Installation:
Height from the ground surface to top part of the guard rail should be 0.75+/- 0.02m.
Depth of the installation is more than 1 m.
Materials of the steel guard rails
Steel parts: beams, poles, washers and nuts according to the standards as below:
Testing on the steel EN 10025
Steel plates 30mm EN 10025
Nuts and washers EN 20898-1, EN 3740 Technical specification of the horizontal guard rails, poles, screws and nuts
Type and the shape of the steel guard rails have a double denting, w shape.
Guard rails & parts made according to ASSHTO M270.
Galvanizing of the steel guard rails and poles according to ASTM A123.
Galvanizing surface according to the requirements of the paragraph 9 of AASHTO M180 - Zinc coating according to paragraph 6 of AASHTO M 180.
The screws and nuts according to the specification of AASHTO 180.
Company Contact:
- Posted By: Huaway Guardrail Engineering Co.
- Phone: 86-534-896358
- Address: No.09 Neo-Tech District,Development Zone,Dezhou,Shandong , dezhou , Hebei , China
- Email:
- Website: https://www.highwayguardrail.org
Published date: April 3, 2023
- Business Description: Huaway Guardrail Engineering Co.
manufactures W Beam (Profile A), Profile B or thrie beam galvanized highway guardrails, and different types of steel posts (C Posts, U Posts, Sigma Posts), we can also supply bolts, nuts and washers, brackets, spacers and relevant guardrails components, etc.
We supply highway guardrails and fencing barriers meeting following quality standards:
AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail – USA)
AS/NZS 3845: 1999(Road Safety Barrier Systems – Australia/New Zealand)
BS EN-1317(Road Restraint Systems – Europe)
RAL RG620 (Germany)
Our company has two guardrail plate molding lines, 2 CGL production (15 meters long x width 1.3 meter -1.8 meters) high hot dip galvanizing lines, and 3 plastic spraying production lines.
Our company has passed ISO9001: 2000 quality certification system which provide powerful guarantee for product quality.
We can provide you with a complete set of service from quote, design, manufacture and installation according to your requirements.
We can design by your plan or manufacture by your drawing.
We have delivered guard rail products for projects in Spain, Germany, UAE, Southeast Asia and African countries.
