Tecon Base 20 Formwork - China

Brief Introduction

TECON BASE 20 Formwork, is the basic wall formwork mainly consisted by H20 timber beam and steel waler with plywood.

It can be easily shaped to different sizes and shapes according to specific projects.

Meanwhile, it is efficient and cost- effective, thus is widely used in the sites across the world.

Feature

* Ready to use after pre- assembly

* Efficient and time- saving especially for large area walls where request for repeated castings

* Can be shaped into any size and shape according to different project structures

* Can meet different fresh concrete pressure by spacing the timbers and walings

* Can produce fair- faced concrete finishing

* Can be transfered into adjustable column formwork according to TECON specially arranged solution

Techinical Specification

* Basic unit sizes( width* height) : 1.0m* 3.0/ 3.6/ 4m; 1.25m* 3.0/ 3.6/ 4m; 1.5m* 3.0/ 3.6/ 4m; 2.0m* 3.0/ 3.6/ 4m; 2.5m* 3.0/ 3.6/ 4m; 3.0m* 3.0/ 3.6/ 4m; 4.0m* 3.0/ 3.6/ 4m; 5.0m* 3.0/ 3.6/ 4m; 6.0m* 3.0/ 3.6/ 4m

* Or any customized unit sizes according to structural drawings

* Upto 6m wall height with just one pouring

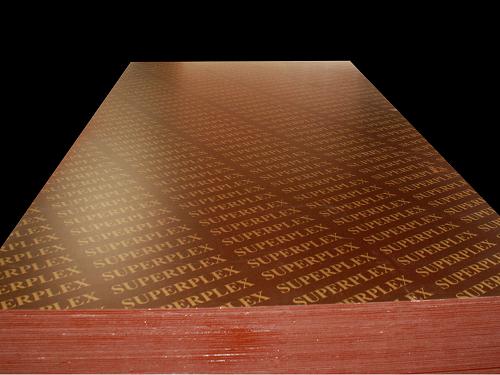

* Main components: 18mm brown film plywood; H20 timber beam( EN) ; # 12 steel waler

Application

Residencial & commercial buildings, concrete tanks, basement, bridge piers, columns ect.

.
