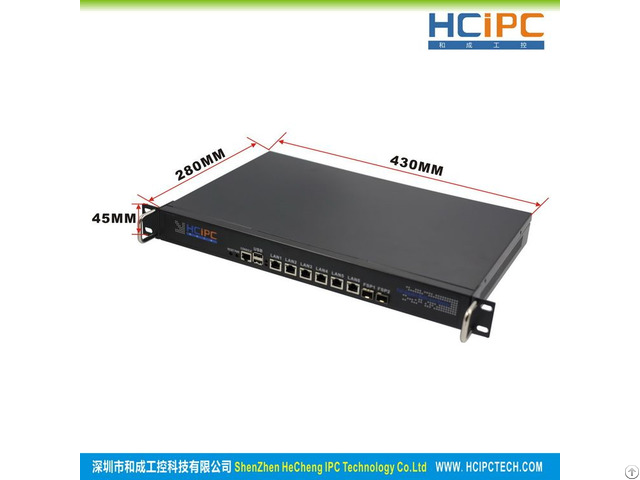

Hcipc B205 2 Hcl Sb75 6l2fspb Intel B75 6lan Firewall System 1u Router - China
price: 399.00 Dollar US$
Products Feature:
Basic Intel B75 Sandybridge/IvyBridge 32nm/22nm LGA1155
Support 6 x LAN, 6*Intel 82574/82583V 1000M, 1xIntel I350 2Fiber LAN
2*SO-DIMM, DDR3 1600MHz Memory, max up to 16GB
Support VGA and 2PCS USB2.0 High performance:
The structure is designed to meet the network security standard, low power consumption, high performance, cost-effective Series No.
B205-2 Model HCL-SB75-6L2FSPB
Platform Intel
Chassis Colour Dark grey
Size 430*280*45MM ( L*W*H)
Structure Heavy Steel Structure
Material High Strength Fine Steel Casting Iron
Package size 520*380*120MM
Net Weight 3.5kg
Gross Weight 4kg
Motherboard Model M505-2 LAN-HCB75SFP-6L
CPU Intel b75 Sandybridge/IvyBridge 32nm/22nm LGA1155
Chipset Intel B75
Memory 2*SO-DIMM, DDR3 1600MHz Memory, max up to 16GB
Storage CF 1 x CF(optical, without onboard, need OEM)
Harddisk 1 x 2.5inch Harddisk
System LAN 6 x LAN, 6*Intel 82574L/82583v 1000M
2 x FSP (Optical Fiber) Intel i350 chip
USB 2 x USB2.0
COM 1 x R232 (Optional)
Display 1 x VGA Cooling System 2x System Fan
System Control Power On/Off button LED Indicator PWR_LED, HDD_LED
PWR Power Mode 1U Flex ATX 250W Powersupply Feature 100-240V
Reliability Installation 1U Rack mount
Operation Temp -5~55°C
Storage Temp -40~80°C
Relative Humidity 10%~80%, Relative humidity, no-condensing Notice: The specifications of this product are subject to changes without prior notice.
Company Contact:
- Posted By: ShenZhen HeCheng IPC Technology Co.Ltd
- Phone: 13428782142
- Address: 607,6F,No.G Building,LiHao Industiral Park,No.78 AiNan Road,Longgang District, Shenzhen , Guangdong , China
- Email:
Published date: November 5, 2018 - Modified date: November 5, 2018
- Business Description: ShenZhen HeCheng IPC Technology Co.
Ltd ( ABB: HCIPC) is located in ShenZhen, China.
We are integrated selling and developing for industrial motherboard, industrial pc, network firewall, service etc, HCIPC is high technology company.
The Main products :
Embedded Motherboard(EPIC, 3.5INCH, PC-104, ETX, NUC, NANO-ITX, MINI-ITX etc)
Industrial motherboard (MINI-ITX, ATX NVR MB，Full CPU card etc.
）
Network Security motherboard（4LAN，6LAN , 8LAN, FSP etc.
）
OEM/ODM
Industr ial PC (4U industrial PC, wall-mounted industrial PC, multi-serial industrial PC, etc.
)
Embedded industrial PC/BOX industrial PC (fanless industrial PC, reinforced fanless industrial PC, three-proof industrial PC, etc.
)
Industrial tablet / industrial one machine (resistance screen / capacitive screen, embedded / shelf type 8.4 inch ~ 21.5 inch, etc.
)
Industrial display (touch / normal, embedded / shelf type 8.4 inch ~ 21.5 inch, etc.
)
Integrated workstation (4U, 8U, etc.
)
Industrial portable machine
Network security Server (19-inch 1U standard, 1U portable, mini fanless, etc.
)
Chassis/machine OEM/ODM service
HCIPC is committed to creating high-reliability and trustworthy intelligent industrial PC hardware for industry users.
The own brand “HCIPC” products are widely used for industrial automation, communication, power, network security, intelligent transportation, video surveillance, medical care, military / aerospace, self-service terminals, data storage, digital signage, car computers and many other fields, products are exported to the Americas, Europe, Southeast Asia and other regions.
HCIPC adhere to the quality of survival, innovation and development, HCIPC wish to do win-win business with customers together, and steadily move forward on the road of industrial products in China, and wish create brilliant feature in the world.
Our Products:
- hcipc b205 2 hcl sb75 6l2fspb intel b75 6lan firewall system 1u router
- hcipc b204 1 hcl sc1037 8lb2 intel c1037 cpu 6pcs 82574l lan 1u router firewall system
- hcipc b100 1 ibox 206c intel atom525 fanless industrial pc with 6com r232
- hcipc b104 3 hnbox 301 c1037 fanless industrial pc
- hcipc m42s 6 and 7 hcm19nvr3 intel j1900 13sata3 nas motheboard mini itx motherboard
