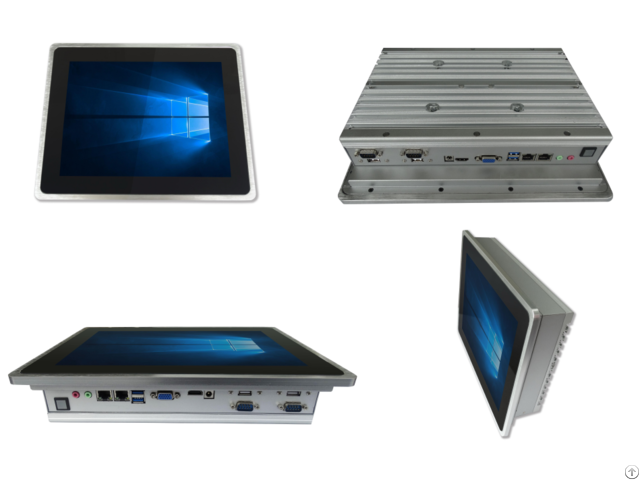

Intel Celeron Soc Processors J1900 Fanless 12 Inch Rugged Capacitive Touch Panel Pc - China

Features:

Ultra low power, fully enclosed fanless design

Capacitive touch screen

Onboard Intel® Celeron® J1900 4-Core 2.0GHz processor Optional ultra low power i3/i5/i7 series CPU

12.1 inch high score screen, 1024*768 resolution

Dual network 2COM, 4USB (optional single network 6COM)

Flat design, front panel waterproof rating IP65 Product specifications:

Structure

Aluminum alloy panel, brushed oxidation natural color (other color optional OEM)

All steel frame, color metal silver, OEM other colors

Large fin heat dissipation, fully enclosed fanless structure

Embedded low power 3.5 inch motherboard

Support M-SATA solid state drive

DC12V power supply

Dimensions: 311.5mm (length) * 250mm (width) * 64mm (thickness)

Weight (net weight / gross weight): 4/5KG LCD liquid crystal:

Size / Type: 12.1" TFT, LED backlight

Resolution: 1024×768

Maximum color: 16.2M

Viewing angle: vertical (+70° ~ -70°), horizontal (+80° ~ -80°)

Brightness: 600cd/m2

Contrast: 400: 1

Reaction time: 8ms

Backlight MTBF: 50, 000h

Touch screen: Capacitive touch screen system:

CPU: Intel® Celeron® J1900 4-Core 2.0GHz processor

Memory: 4G DDR3

Hard disk: optional M-SATA and SSD solid state hard disk 64G Exposed interface:

DC IN; HDMI; VGA; 4 USB, 2 LAN, audio interfaces; 2/3 RS232 serial ports; 1 parallel port;
