Hcipc B204 1 Hcl Sc1037 8lb2 Intel C1037 Cpu 6pcs 82574l Lan 1u Router Firewall System - China
price: contact company for price
Products Feature:
Basic INTEL Celeron C1037
Support 8 x LAN, Intel 82574L 1000M, Giga LAN
1pcs DDR3 SO DIMM memory, Max up to 8G
Support VGA and 2pcs USB3.0
12V 12.5A Open Frame Powersupply High performance:
The structure is designed to meet the network security standard, low power consumption, high performance, cost-effective Series No.
B204-1
Model HCL-SC1037-8LB
Platform Intel
Chassis Colour Dark grey

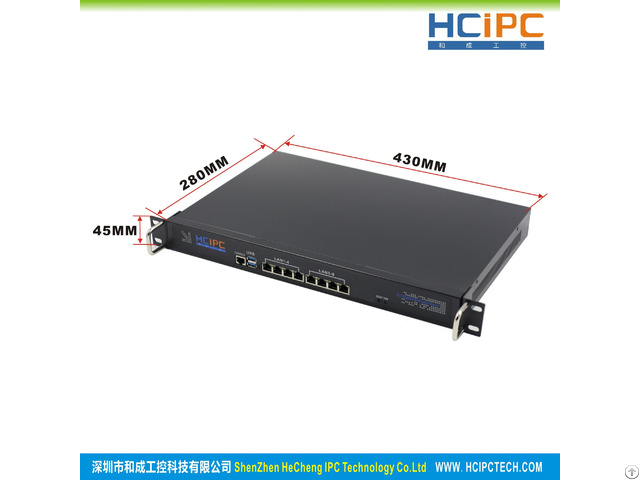

Size 430*280*45MM ( L*W*H)
Structure Heavy Steel Structure
Material High Strength Fine Steel Casting Iron
Package size 520*380*120MM
Net Weight 3.5kg
Gross Weight 4kg
Motherboard Model M502-2 LAN-HC1037-8L
CPU Intel Ivy Bridge Celeron dual-core C1037U 1.8GHz
Chipset Intel NM70
Memory 1*SO-DIMM, DDR3 1333\1600MHz Memory, max up to 8GB
Storage CF 1 x CF
Harddisk 1 x 3.5 or 2x 2.5inch Harddisk
System LAN 8 x LAN, Intel 82574L 1000M
USB 2 x USB3.0
COM 1 x R232 (Optional)
Display 1 x VGA Cooling System 2x System Fan
System Control Power On/Off button LED Indicator PWR_LED, HDD_LED
PS/2 N/A
PWR Power Mode Open Frame 12V 12.5A (we use MeanWell Brand: LRS-150)
Feature N/A
Reliability Installation 1U Rack mount
Operation Temp -5~55°C
Storage Temp -40~80°C
Relative Humidity 10%~80%, Relative humidity, no-condensing Motherboard Model:M502-2 LAN-HC1037-8L
