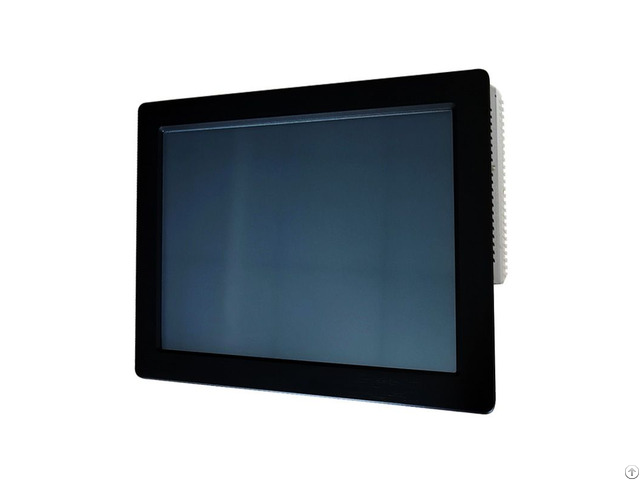

Fanless Industrial Panel Pc - China

IPC-15PF is a15" fanless industrial panel pc with touch screen, SSD/HDD and RAM size is option, Optional to equipped 3/4/5/6 COM, OEM is accpted for industrial Automation equipments.

Supports Microsoft ® Windows 7, Microsoft ® Windows 10, Microsoft ®WES7P, Microsoft ® Windows 10 IOT LTSC, Linux.

10.1~21.5 are alternatives for your projects.

They are support European, Asian, US or UK power cord.

Features

Low power consumption and fanless design

15" TFT XGA LED Panel (1024 x 768) with resistive touch screen

Embedded Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)

1x SODIMM DDR3 1600/1333 SDRAM, Preload 2G RAM (Max 8G)

3/4/5/6 x COM (1xRS422/485), 1x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO and MIC

Offers 1 x Mini PCIe slot, for expansion

Rear panel with power LED and HDD LED Indication

Wireless LAN with antenna (optional)

DC12V input (option Wide range DC 9-36V input)

6mm Robust aluminum with IP65 compliant front bezel design

Panel ( Flush ) mount with clip or Standard VESA 100x100mm support stand, wall mount and swing arm Main System CPU Onboard Intel Intel ® Celeron ® Processor J1900 processor

Chipset Intel Bay trail SOC

System Memory Preload 2GB Ram(Max 8G)

HDD (hard disk ) 2.5" SATA HDD/SSD; Preload 500GB HDD

LAN 2x Realtek ® RL8111x (Gigabit) 10/100/1000Ethernet

Graphic Intel HD chipset

Audio Realtek ® ALC662, 5.1 channel surround Audio

I/O Connector 2/3/4/5 x RS-232

1 x RS422/485

1 x HDMI

1x DB-15 Connector

1x Audio (Mic-in / Line-out)

2x 10/100/1000MLAN port ( RJ-45 ) 3 x USB2.0, 1 x USB3.0

1x 3Pin DC power input terminal block

Expansion 1x Mini PCIe slot General Construction Aluminum front bezel and Aluminum chassis

OS Support Windows 10/8/7, Windows XP, Linux

Mounting Panel mount or Standard VESA 100mm

Power supply DC Input Voltage : 12v, with External AC adapter; Output Rating 28W Optional Wide range DC 9-36V input LCD display Display type 15" XGA TFT LCD LED Backlight

Resolution 1024 x 768 pixels

Contrast Ratio 700: 1

Luminance 450 cd/m2

Viewing angle 160 °(H), 140 °(V)

Response Time 12 ms

LCD MBTF 50, 000hrs Touchscreen Type Resistive touch screen

Controller Interface Internal USB interface controller

Resolution Continuous

Light Transmission 81% or more

Operating Force ≤100g

Life Expectancy 35 Million Environmental Operate Temperature 0 ~ 50 °C (32 ~ 125 °F)

Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)

Humidity 10% to 90%@ 40 °C, on-condensing

Vibration 17 to 500HZ 1G PTP

Operating Shock 1G /peak ( 11m sec)

Ingress Protection Front panel IP65/NEMA4 Packing info Dimensions(WxHxD) 406 x 312 x 68mm

NET weight 7.5 KG
