Arm9 S3c2416 Embedded Board Computer Em2416 - China

Summary

EM2416 is an Embedded-board computer based on Samsung ARM9 S3C2416X, 128MB DDR2 RAM, default mounted 256MB NAND Flash.

Linux2.6 and WinCE6.0 OS.

Support GPRS/GSM, WIFI and GPS module.

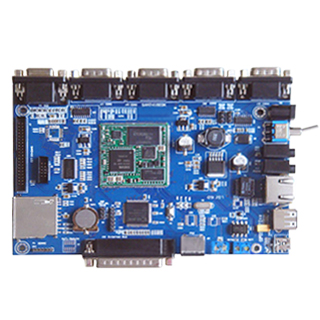

1 EM2416 Overview

EM2416 Development Board offers true rapid development solutions by providing all the necessary ingredients to jump start embedded designs.

The board includes the MINI2416-III SOM and Carrier Board pre-installed Linux OS.

The mother board integrates a rich set of peripherals and interfaces including Ethernet, USB Host &Device, Serial ports, Audio, LCD, Keyboard, SD/MMC, Buttons, LEDs and etc.

EM2416 has complete electronic documentation, schematics, demo applications, and third party industry-standard C compilers and embedded development environments for evaluation.

2 EM2416 Highlight

* With MINI2440 PIN-TO-PIN compatible, and share same carrier board of EM2440

* Processor: Samsung ARM9 S3C2416X 400MHz with separate 16KB instruction and 16KB data caches, 2D Accelerator

* 128MB DDR2 RAM, 133MHz

* Default mounted NAND Flash 256MB NAND Flash, Samsung K2F2G08 - It can be replaced into among 256MB to 2GB immediately

* Preinstalled Linux2.6

* Power supply: 3.3V, 5V

* LCD, AD, SPI, UART, USB, SD/MMC, Ethernet, IIS, I2C, RTC, PWM, GPIO, Local bus and all I/O CPU lines can be extended via board-to-board connectors

* GPRS/GSM, WIFI and GPS

3 About Services

Boardcon backs up our kits with a Start-Up Guarantee.

We invite you to make use of our free technical support until any start-up problem you might encounter is solved.

The positive out-of-box experience with the Rapid Development Kit illustrates Boardcon's continuous commitment to providing customers with effective embedded solutions by offering a hands-on, industry-centric entry point for embedded developments, which is a key starting point for OEMs needing to have a complete solution up and running under very short development time constraints.

If somewhere on the board don't meet your specification of your project, we will modify the board for a semi-custom solution.

When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
