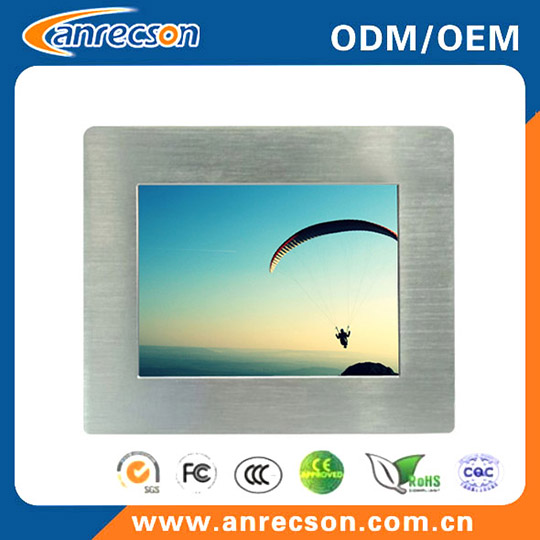

10 4 Inch Industrial All In One Computer With Hdmi Lan Ethernet Usb Rs232 Ports - China

Display Type/ Size Color TFT LCD/ 10.4″

Active Display Area ( mm) 211.2mm( W) ×158.4mm( H)

Display Mode 4: 3

Max Resolution 800×600

Support Color 16.7M

Luminance( cd/ m2) 250cd/ m²

Backlight LED backlight

Contrast Ratio 500: 1

Response Time 5ms

Pixel Pitch 0.264( H) ×0.264( V)

Viewing Angle 140/ 110( H/ V)

Chip set Intel N2600+NM10

CPU N2600

Video Intel GMA3650，640MHz

Internal memory DDR3（800/ 1066/ 1333MHz）Typ.

2G ( Max 4G)

Hard disk 16GB high speed solid state disk ( optional)

HDMI ports 1xHDMI Ports

COM ports Defaultx2 COM( optional)

Ethernet ports 2xRJ45 Realtek 8111E 1000 Mbps / ( optional Wi- Fi connectivity supporting 802.11 a/ b/ g.

)

Audio Realtek HD ALC269Q

Line- In/ Line- Out/ Speaker out with 1W AMP Circuit

USB ports Defaultx4 USB( Max x6)

TouchScreen Type Resistive( 4- wire/ 5- wire)

Optional Touch Type SAW, IR, Capacitive

TouchScreen interface Serial ( RS232) or USB

Input Voltage DC12V 3A

Output Rating ≤25W

Operating Temperature - 20～60℃

Relative Humidity 20( % RH) ～90( % RH)
