High Speed Usb 3 0 Af Right Angled 90 Degree Dip Type With Kink Legs Over Pcb - China

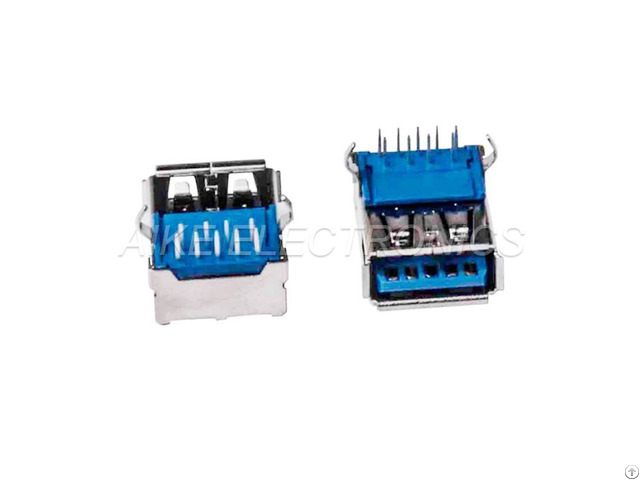

High Speed USB 3.0 AF, Right Angled, 90 degree, DIP Type with KINK Legs(Over PCB)

USB 3.0 Af Supplier

USB 3.0 Af Vertical Type

Introduction：

High Speed USB 3.0 AF, Right Angled, 90 degree, DIP Type with KINK Legs(Over PCB), one of the most popular part among the USB3.0 Group.

USB 3.0, the new generation of USB interface, It is characterized by a very fast transmission Speed, in theory up to 5Gbps, 10 times faster than the common 480Mbps High Speed USB (referred to as USB 2.0), fully surpass IEEE 1394 and eSATA.

The appearance is basically consistent with the ordinary USB interface, and it is compatible with USB 2.0 and USB 1.1 devices, it has various types.

Type USB 3.0 AF, Right Angled, 90 degree, DIP Type with KINK Legs(Over PCB)

Materials For housing can be PBT, LCP, PA6T, PA9T and so on

For shell can be SPCC, Copper and so on.

Colour Blue or Black or Customized Color

Plating For Shell, Ni and Tin Plating

For Contact, Au, Ni, and Tin Plating

Plating Thickness For Shell, 50U', 100U' or Higher

For Contact, 1U', 3U'5U'15U', 30U' or Higher

Both are depands on custoer request

Electronical Current Rated: 1.80 Amperes for VBUS and GND contacts

0.25 Amperes for all other contacts Rated Voltage: AC 100V(RMS) Contact Resistance: 30m ohm Max for VBUS and GND contacts

50m ohm Max for all other contacts Insulation Resistance: 100M ohms Min

Machenical Insertion Force: .

35N Max Withdraw Force: 10N Min

Application PCB, Mobile Phone, Computer, Mobile Power, Bluetooth, Headphone, Jack speaker, Electronic products charging, etc.

Package Tray Package or Tape Reel Or Customized Package

Delivery Time Usually 25-35 days after receiving the 30% deposit

Payment terms TT, L/C, DP or Negotiable

Note This part is only one sample for this serious products, we can change the shell, the legs and even housing to make lots of similar parts.

We are so able to produce other standard as per the clients' requirements.

Just let us know.

We are USB 3.0 With Cover Supplier.
