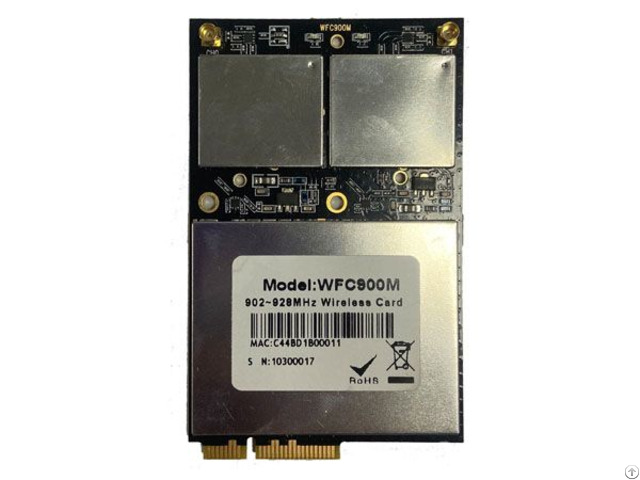

Wfc900m 905mhz To 925mhz Frequency Range - China
price: 200.00 Dollar US$
Featuring with industrial-grade Atheros’s AR9582 chipset
Integrated with 2x 2 900M high power Radio Card
905MHz to 925MHz Frequency Range
2 x MMCX Connectors
5M/10M/20MHz Bandwidth
Support 11AN
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals Absolute Maximum Rating Parameter Rating Unit
Supply Voltage 3.3V(MINIPCIE) V
Operating Temperature Range -40 to +60 ºC
Storage Temperature Range -65 to +105 ºC
Operating Humidity Range 5 to +95 (non-condensing) %
Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter
CPU AR9582
Antenna Connector 2 x MMCX connectors
ROHS Compliance YES
Dimension 79mm x 51mm x 10mm Radio TX Specifications(905MHz-925 MHz) Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains 802.11a 6 Mbps 25dBm 28dbm ±2dB 54 Mbps 21dBm 24dbm ±2dB
802.11n HT20 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 20dBm 23dbm ±2dB Radio RX Specifications(905MHz-925 MHz) Operating Mode Data Rate Sensitivity
802.11a 6 Mbps -96dBm 54 Mbps -78dBm
802.11n HT20 MCS0, MCS8 -92dBm MCS7, MCS15 -73dBm
Company Contact:
- Posted By: Wallys Communications (Suzhou) Co., LTD
- Phone: 17366272175
- Address: 116 ChengYang Road, XiangCheng District, SuZhou City, JiangSu Province, China
- Email:
- Website: https://www.wallystech.com/
Published date: January 10, 2022
- Business Description: Wallys Communications (Suzhou ) Co., LTD With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards.
In the complex market, Wallys products stand out and are affirmed by partners.
From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
