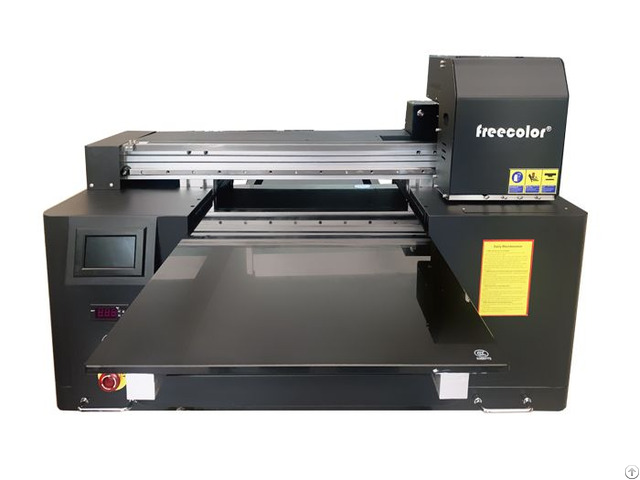

Fc Uv4060 Max Plus Uv Led Direct To Substrate Printer - China

Freecolor's FC-UV4060 MAX PLUS is our new multifunctional printer ! with double printhead, adopt double CMYK and 4xWhite color model, which greatly increase the print speed to meet your large jobs requirement.

This new technology combine UV curable inks and a built-in UV-LED lamp to produce vibrant full color and textured imprints that cure rock-solid on a huge variety of substrates, including dark and clear materials!

Freecolor's FC-UV4060 MAX PLUS has a large imprint area of 18”W x 25”L x 8”H.

The built-in automatic height sensor will detect products and position the flatbed so they are at an optimum distance (2mm) from the print head to maintain the highest quality imprints possible.

UV printer for sale

Our repositionable tray fixtures make it easy to print on products of varying shapes and materials.

Simply lift off one tray and slide in a new one to change from one product to another.

Print speed for a full print run ranges from 1 mins to 5 mins.

The built-in UV-LED lamp cures the inks instantly as they are printed for rock-solid, durable imprints on metal, glass, wood, stone, plastic, fabric, vinyl and MUCH more!

Printer Model FC-UV4060 MAX PLUS

Print head 2 pieces Epson TX800 head

Ink CMYK + CMYK + WWWW

Print Speed 2-5 square meter per hour

Print Size 45x65cm max.

Print Height 20cm max.

Rotary Device Optional

Print Resolution 720x1080 / 720x1440 / 720x2160 dpi

RIP Software Maintop 6.0 or Photoprint 12

Cleaning System Auto Cleaning System

White Ciculation System Yes

Ink Supply System Open Bulk Tank With Ink Lack Alarm Device

Printer Dimension 920x940x570mm

Computer System Requirement Windows 7 / 10 64bit

Connection Port USB 2.0 /3.0

Cooling System Water Circulation Cooling

Motor Brand Leadshine Servo
