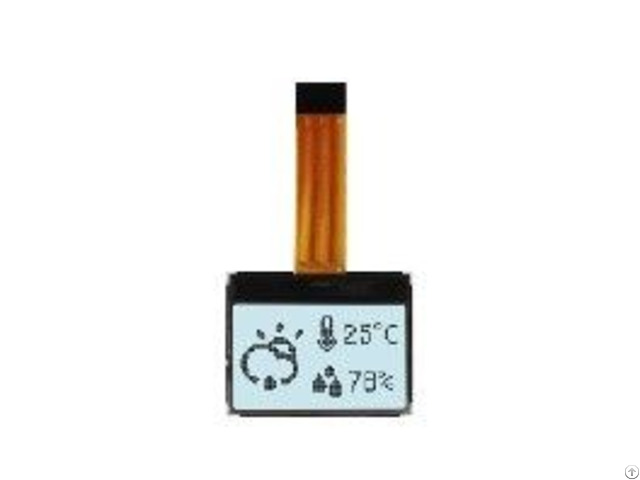

Stn Cog Module - Taiwan
price: contact company for price
Model: OX14464B
Resolution: 144 x 64
Power supply: 3V
Interface: 6800/8080
IC: ST7525-G4
Duty: 1/65 Duty Mechanical Data:
COG (Chip On Board) is available with Monochrome Character/ Graphic (Dot Matrix) type without PCB structure base.
The light weight brings a thinner module that offfer an option for a thickness sensitive display project.
The COG type of module is cost effective compare with COB, and can simply customize per your chasis needs.
You can always choose from various options according to your application needs.
Polarizer options: Reflective/ Tranflective/ Tranmission
LCD type options: TN/ STN/HTN/FSTN
LCD color options: Yellow Geen/ Blue/ Black
LED backlight options: White/ Blue/ Yellow Green/ Green/ Red/ Amber.
etc
Item Dimension(m*m)
Module dimension: 56.6 x 44.2
View area: 50.6 x 31.0
Active area: 46.482 x 27.682
Dot pitch: 0.323 x 0.433
Company Contact:
- Posted By: Optima Opto Co., Ltd
- Phone: 886435051156
- Address: 7F-2, No. 366, Beitun Rd., Beitun Dist.,, Taichung City, Taiwan , Taiwan
- Email:
- Website: https://www.optima-opto.com.tw
Published date: March 29, 2023
- Business Description: Optima Opto is aiming to be the best partner of display solution by delivering design and manufacture high quality display products.
We offer strong R&D capability on LCD, LCM, TFT, OLED display and integration of control solution technologies, with not only the wide range standard models but also customize display solutions.
Optima Opto is specialized in communication, industry, medical, home appliance, automotive and industrial field, the integral of LCD display and control solution provide more options to the customers who need supports other than the display parts.
