Linkreal Pcie 3 0 X16 To 4 Port Internal M 2 Nvme Ssd Adapter With Chipset Plx8747 - China

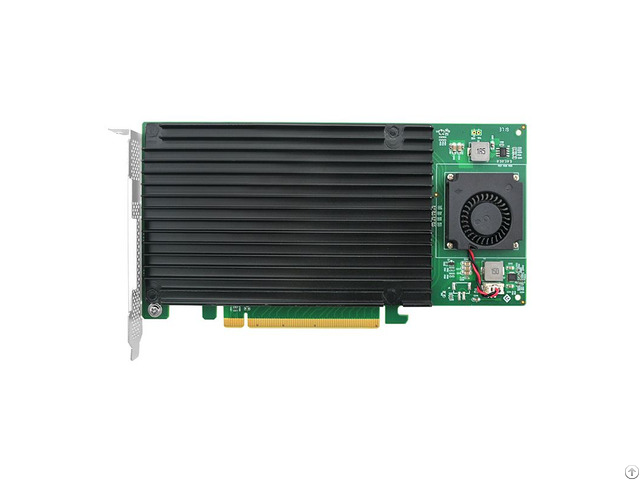

LRNV9547 NVMe Adapter is PCI Express x16 Gen3 PCIe switch Card.

It expands the maximum storage of the 4 M.

2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms.

It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance.

Product Model: LRNV9547-4I

Product Name: Quad PCIe 3.0 x16 to M.

2 NVMe SSD Adapter(Without SSD)

Chipset: PLX 8747

Interface Type: 4*M.

2 Connectors

Support Equipment: 4*NVMe SSD for 2230, 2242, 2260, 2280 and 22110mm

Host Bus Type: PCIe 3.0 x16

Functional Characteristics * Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).

* Compliant with PCI Power Management Spec, r1.2 - * Microsoft Vista Compliant.

* Supports Access Control Services.

* High Performance.

Non-blocking switch fabric, Full line rate on all ports.

* Quality of Service.

Eight traffic classes per port.

* Reliability, Availability, Serviceability.

* Supports PCIe NVME ports.

* The PCIe transfer rate up to 128Gb/s and the SSD transfer rate up to 32Gb/s.

Applications

Suitable for host-centric as well as peer-to-peer traffic patterns, the LRNV9547 can be configured for a variety of graphics applications.

Advantages Suitable for small sized M.

2 SSD support PCI Express, It can get the maximum bandwidth and transfer rate while the 4 M.

2 SSD running at the same time.
